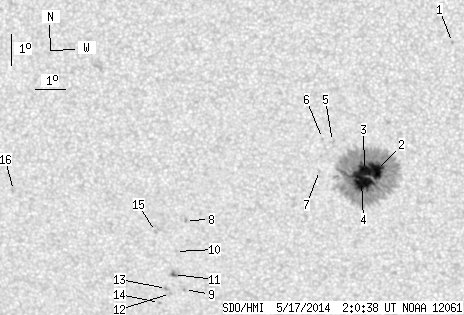

SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.08 | 307.98 | 29.91 | 164.40 | -24.02 | 191.94 | -3.22 | 172.20 | 0.3734 | 696.0 | 322.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.70 | -19.65 | 195.16 | 0.00 | 180.01 | 0.2969 | -903.0 | -697.6 | |
| 15.73 | 287.73 | 8.37 | 153.38 | -23.76 | 192.64 | -2.52 | 173.68 | 0.3671 | 1383.0 | 384.8 | |
| 13.84 | -2.00 | 7.37 | -2.00 | -23.76 | 192.24 | -2.92 | 172.69 | 0.3678 | 1386.1 | 999999 | |
| 25.70 | -2.00 | 13.72 | -2.00 | -24.12 | 192.13 | -3.03 | 172.56 | 0.3738 | 1097.5 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.29 | -22.81 | 191.21 | -3.95 | 169.66 | 0.3552 | 781.0 | 639.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -22.71 | 190.88 | -4.28 | 168.77 | 0.3546 | -530.0 | -433.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -23.75 | 190.75 | -4.41 | 169.03 | 0.3716 | 587.0 | 383.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -25.36 | 186.16 | -9.00 | 160.07 | 0.4163 | -825.0 | -698.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -27.65 | 185.94 | -9.22 | 161.58 | 0.4511 | -707.0 | -639.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -26.38 | 185.74 | -9.42 | 160.14 | 0.4335 | -710.0 | -508.0 | |
| 0.81 | 2.70 | 0.45 | 1.49 | -27.15 | 185.60 | -9.56 | 160.55 | 0.4454 | -980.6 | -853.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -27.78 | 185.44 | -9.72 | 160.78 | 0.4555 | -690.0 | -604.0 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -27.62 | 185.32 | -9.84 | 160.42 | 0.4537 | -796.0 | -659.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -28.08 | 185.03 | -10.13 | 160.29 | 0.4619 | -589.0 | -558.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -25.72 | 185.11 | -10.05 | 158.32 | 0.4274 | -701.0 | -588.5 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -24.32 | 180.39 | -14.77 | 148.13 | 0.4419 | -479.0 | -479.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
