SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.96 | 265.16 | 35.92 | 140.65 | 10.43 | 178.74 | -16.42 | 51.25 | 0.3571 | -42.5 | 84.5 | |
|
previous
or next observation for the same group /

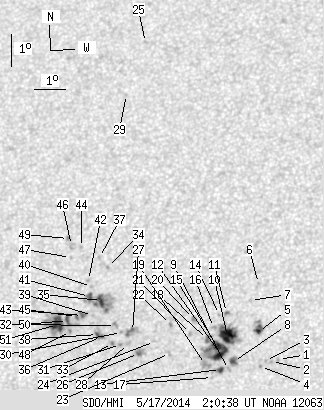

back to the solar disc SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.31 | 182.82 | -12.34 | 46.10 | 0.2940 | -973.0 | -711.6 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 9.25 | 182.60 | -12.56 | 46.75 | 0.2960 | -787.0 | -625.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.28 | 182.41 | -12.75 | 47.09 | 0.2987 | -866.0 | -698.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 9.10 | 182.26 | -12.90 | 47.89 | 0.2985 | -946.0 | -848.0 | |
| 1.98 | 10.33 | 1.03 | 5.39 | 10.18 | 182.15 | -13.01 | 45.48 | 0.3120 | -1173.5 | -806.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 11.68 | 182.09 | -13.07 | 42.32 | 0.3304 | 800.0 | 635.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 11.15 | 181.86 | -13.30 | 43.94 | 0.3267 | -596.0 | -434.9 | |
| 2.70 | 7.01 | 1.40 | 3.65 | 9.26 | 181.40 | -13.76 | 49.30 | 0.3110 | -1167.0 | -883.2 | |
| 0.00 | 2.07 | 0.00 | 1.08 | 9.02 | 181.25 | -13.91 | 50.21 | 0.3103 | -837.0 | -750.9 | |
| 15.10 | 67.48 | 7.90 | 35.30 | 10.07 | 181.17 | -13.98 | 47.80 | 0.3225 | -1212.4 | -572.7 | |
| 0.54 | 1.71 | 0.28 | 0.90 | 10.79 | 181.11 | -14.05 | 46.30 | 0.3312 | -892.7 | -723.9 | |
| 10.51 | -10.00 | 5.49 | -10.00 | 9.52 | 180.98 | -14.18 | 49.52 | 0.3190 | -1163.7 | 999999 | |
| 2.16 | 5.75 | 1.12 | 3.00 | 9.02 | 181.00 | -14.16 | 50.71 | 0.3136 | -1106.9 | -756.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 10.73 | 180.89 | -14.27 | 46.87 | 0.3332 | -471.0 | -441.5 | |
| 7.28 | -10.00 | 3.81 | -10.00 | 9.73 | 180.87 | -14.29 | 49.21 | 0.3226 | -1087.3 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 10.33 | 180.72 | -14.44 | 48.12 | 0.3309 | -655.0 | -589.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 8.78 | 180.75 | -14.40 | 51.80 | 0.3142 | -360.0 | -331.7 | |
| 0.00 | 3.77 | 0.00 | 1.98 | 9.96 | 180.54 | -14.61 | 49.32 | 0.3291 | -772.0 | -666.4 | |
| 0.00 | 7.37 | 0.00 | 3.85 | 9.18 | 180.51 | -14.64 | 51.24 | 0.3214 | -318.0 | -436.2 | |
| 0.00 | 2.79 | 0.00 | 1.47 | 10.61 | 180.07 | -15.09 | 48.71 | 0.3420 | -776.0 | -658.8 | |
| 0.00 | 2.16 | 0.00 | 1.13 | 10.15 | 179.99 | -15.16 | 49.90 | 0.3380 | -754.0 | -558.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 10.44 | 179.34 | -15.82 | 50.42 | 0.3493 | -833.0 | -705.0 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 9.54 | 179.35 | -15.80 | 52.48 | 0.3401 | -329.0 | -265.9 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 9.92 | 178.85 | -16.30 | 52.45 | 0.3503 | -163.0 | -188.9 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 19.42 | 177.81 | -17.35 | 37.17 | 0.4673 | 515.0 | 444.5 | |
| 1.08 | 6.47 | 0.57 | 3.42 | 9.55 | 178.36 | -16.80 | 54.11 | 0.3533 | 807.1 | 289.2 | |
| 0.00 | 9.44 | 0.00 | 5.01 | 10.24 | 178.13 | -17.03 | 52.91 | 0.3628 | 122.0 | 404.7 | |
| 0.00 | 2.88 | 0.00 | 1.53 | 9.86 | 178.02 | -17.14 | 53.92 | 0.3607 | 853.0 | 691.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.74 | 177.35 | -17.81 | 40.31 | 0.4521 | 661.0 | 561.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.21 | 177.78 | -17.38 | 53.52 | 0.3672 | 718.0 | 645.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 9.84 | 177.76 | -17.39 | 54.38 | 0.3639 | 1048.0 | 822.3 | |
| 0.00 | 2.79 | 0.00 | 1.49 | 10.43 | 177.57 | -17.59 | 53.35 | 0.3720 | 889.0 | 747.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 9.87 | 177.50 | -17.65 | 54.70 | 0.3677 | 880.0 | 801.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 12.25 | 177.19 | -17.96 | 50.12 | 0.3944 | 893.0 | 674.8 | |
| 5.39 | 35.49 | 2.89 | 19.05 | 11.22 | 177.07 | -18.09 | 52.43 | 0.3859 | 1069.4 | 687.6 | |
| 0.81 | 8.00 | 0.43 | 4.27 | 10.10 | 177.14 | -18.02 | 54.75 | 0.3746 | 1021.8 | 783.4 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 12.56 | 176.91 | -18.25 | 49.93 | 0.4010 | 643.0 | 528.5 | |
| 0.90 | -36.00 | 0.48 | -36.00 | 10.16 | 177.00 | -18.15 | 54.80 | 0.3769 | 1042.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 10.75 | 176.80 | -18.35 | 53.80 | 0.3850 | 820.0 | 649.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 11.66 | 176.71 | -18.44 | 52.04 | 0.3947 | 718.0 | 506.6 | |
| 2.79 | -35.00 | 1.50 | -35.00 | 11.35 | 176.67 | -18.49 | 52.75 | 0.3923 | 883.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 11.85 | 176.60 | -18.55 | 51.82 | 0.3979 | 750.0 | 597.9 | |
| 1.26 | 8.09 | 0.68 | 4.35 | 10.76 | 176.48 | -18.68 | 54.26 | 0.3893 | 1023.6 | 756.5 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 12.89 | 176.30 | -18.86 | 50.22 | 0.4118 | 746.0 | 588.9 | |
| 0.72 | -43.00 | 0.39 | -43.00 | 10.73 | 176.28 | -18.87 | 54.60 | 0.3916 | 942.0 | 999999 | |
| 0.00 | 4.67 | 0.00 | 2.54 | 12.96 | 175.96 | -19.20 | 50.57 | 0.4166 | 629.0 | 615.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 12.58 | 175.96 | -19.20 | 51.30 | 0.4130 | 749.0 | 562.4 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 10.27 | 176.12 | -19.04 | 55.83 | 0.3896 | 1052.0 | 839.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 13.18 | 175.84 | -19.31 | 50.32 | 0.4202 | 789.0 | 659.2 | |
| 2.52 | 41.16 | 1.36 | 22.21 | 10.61 | 176.00 | -19.16 | 55.25 | 0.3942 | 1009.5 | 517.9 | |
| 12.22 | -50.00 | 6.59 | -50.00 | 10.49 | 175.68 | -19.48 | 55.94 | 0.3974 | 1070.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
