SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.19 | 108.56 | 19.48 | 55.30 | -15.92 | 194.40 | -0.75 | 176.74 | 0.2347 | 358.1 | 207.4 | |
|
previous
or next observation for the same group /

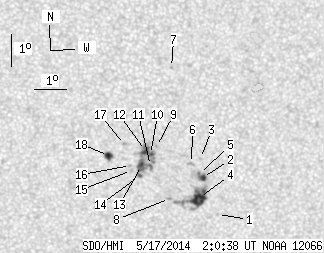

back to the solar disc SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.55 | -17.16 | 195.89 | 0.74 | 182.77 | 0.2552 | 796.0 | 606.1 | |
| 2.79 | 10.96 | 1.42 | 5.59 | -16.00 | 195.42 | 0.26 | 181.07 | 0.2353 | 1101.3 | 366.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.41 | 195.35 | 0.20 | 180.85 | 0.2252 | 709.0 | 560.2 | |
| 16.35 | 37.74 | 8.36 | 19.29 | -16.63 | 195.32 | 0.17 | 180.65 | 0.2459 | 1086.5 | 608.3 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -15.88 | 195.32 | 0.17 | 180.69 | 0.2332 | 985.3 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.37 | -15.57 | 195.07 | -0.09 | 179.63 | 0.2278 | 861.0 | 572.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.60 | 194.45 | -0.70 | 176.11 | 0.1772 | -927.0 | -662.5 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -16.66 | 194.37 | -0.78 | 176.94 | 0.2468 | 534.0 | 474.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -15.04 | 193.97 | -1.18 | 174.77 | 0.2197 | 903.0 | 657.6 | |
| 1.89 | 41.33 | 0.96 | 21.02 | -15.29 | 193.78 | -1.37 | 174.05 | 0.2242 | -376.0 | -165.9 | |
| 1.08 | -10.00 | 0.55 | -10.00 | -15.63 | 193.78 | -1.38 | 174.20 | 0.2300 | -843.2 | 999999 | |
| 4.58 | -10.00 | 2.33 | -10.00 | -15.16 | 193.63 | -1.53 | 173.32 | 0.2224 | 1038.0 | 999999 | |
| 5.93 | -10.00 | 3.02 | -10.00 | -15.63 | 193.50 | -1.66 | 173.02 | 0.2306 | -911.2 | 999999 | |
| 1.17 | -10.00 | 0.60 | -10.00 | -15.94 | 193.43 | -1.73 | 172.92 | 0.2360 | -793.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -15.78 | 193.18 | -1.98 | 171.81 | 0.2339 | -554.0 | -315.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -15.63 | 193.15 | -2.01 | 171.58 | 0.2314 | -781.0 | -514.6 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -14.97 | 192.97 | -2.19 | 170.34 | 0.2208 | 894.0 | 673.8 | |
| 4.13 | 5.66 | 2.10 | 2.88 | -15.31 | 192.46 | -2.69 | 168.48 | 0.2281 | -959.1 | -665.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
