SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.93 | 27.96 | 12.50 | 25.15 | -8.35 | 251.76 | 56.60 | 261.61 | 0.8369 | 11.7 | -54.5 | |
|
previous
or next observation for the same group /

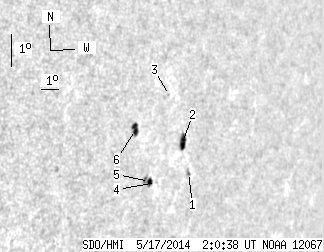

back to the solar disc SDO HMI 2014-05-17 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.88 | 0.00 | 2.70 | -8.91 | 253.38 | 58.22 | 261.04 | 0.8523 | 525.0 | 399.4 | |
| 6.38 | 9.35 | 5.91 | 8.65 | -8.01 | 252.82 | 57.66 | 262.07 | 0.8468 | 474.4 | 211.3 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -6.61 | 251.80 | 56.64 | 263.70 | 0.8369 | 497.0 | 400.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -9.27 | 251.63 | 56.48 | 260.50 | 0.8363 | -161.0 | -171.0 | |
| 2.70 | 7.73 | 2.40 | 6.86 | -9.26 | 251.24 | 56.08 | 260.50 | 0.8326 | -515.6 | -435.6 | |
| 4.85 | 7.10 | 4.19 | 6.13 | -7.70 | 250.14 | 54.98 | 262.31 | 0.8211 | -536.2 | -305.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
