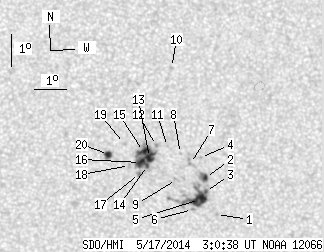

SDO HMI 2014-05-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.19 | 112.54 | 24.02 | 57.35 | -15.95 | 194.47 | -0.13 | 179.30 | 0.2350 | 189.7 | 389.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.74 | -17.19 | 195.88 | 1.28 | 184.78 | 0.2564 | 820.0 | 597.3 | |
| 2.97 | 7.01 | 1.51 | 3.57 | -16.03 | 195.53 | 0.92 | 183.77 | 0.2364 | 1148.8 | 791.4 | |
| 1.08 | 41.25 | 0.55 | 21.08 | -16.47 | 195.53 | 0.92 | 183.65 | 0.2438 | 997.6 | 695.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.41 | 195.37 | 0.76 | 183.28 | 0.2256 | 899.0 | 745.8 | |
| 13.66 | -3.00 | 6.98 | -3.00 | -16.72 | 195.34 | 0.74 | 182.85 | 0.2479 | 1129.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -17.03 | 195.12 | 0.51 | 181.95 | 0.2530 | 698.0 | 545.8 | |
| 0.00 | 5.21 | 0.00 | 2.65 | -15.59 | 195.06 | 0.45 | 181.90 | 0.2285 | 812.0 | 608.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.28 | 194.74 | 0.13 | 180.59 | 0.2231 | 643.0 | 432.5 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -16.09 | 194.61 | 0.01 | 180.03 | 0.2369 | 91.0 | 60.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -12.62 | 194.46 | -0.14 | 179.21 | 0.1774 | -794.0 | -577.9 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -15.06 | 194.33 | -0.27 | 178.79 | 0.2194 | 679.0 | 500.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -15.03 | 193.99 | -0.62 | 177.26 | 0.2191 | 960.0 | 699.7 | |
| 8.09 | 35.32 | 4.11 | 17.96 | -15.40 | 193.77 | -0.84 | 176.39 | 0.2256 | -884.8 | 88.7 | |
| 1.53 | -13.00 | 0.78 | -13.00 | -15.65 | 193.70 | -0.90 | 176.19 | 0.2300 | -907.6 | 999999 | |
| 7.82 | -13.00 | 3.97 | -13.00 | -15.22 | 193.58 | -1.03 | 175.52 | 0.2227 | 754.8 | 999999 | |
| 8.09 | -13.00 | 4.11 | -13.00 | -15.56 | 193.48 | -1.12 | 175.24 | 0.2286 | -932.8 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.47 | -15.90 | 193.45 | -1.16 | 175.23 | 0.2345 | -1024.0 | -762.2 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -15.65 | 193.14 | -1.47 | 173.82 | 0.2308 | -827.0 | -641.0 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -14.97 | 192.98 | -1.62 | 172.81 | 0.2195 | 802.0 | 645.6 | |
| 3.95 | 5.84 | 2.01 | 2.97 | -15.31 | 192.48 | -2.13 | 170.86 | 0.2265 | -952.2 | -661.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
