SDO HMI 2014-05-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.99 | 34.88 | 11.07 | 22.70 | -17.10 | 156.24 | -38.37 | 113.81 | 0.6507 | 740.6 | 372.9 | |
|
previous
or next observation for the same group /

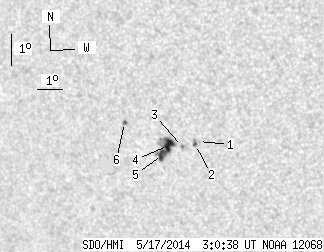

back to the solar disc SDO HMI 2014-05-17 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.75 | -16.98 | 157.50 | -37.11 | 114.19 | 0.6348 | 733.0 | 524.2 | |
| 0.81 | 3.06 | 0.52 | 1.96 | -17.07 | 157.36 | -37.25 | 114.26 | 0.6369 | 882.6 | 718.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -17.12 | 156.83 | -37.78 | 114.09 | 0.6436 | 836.0 | 645.0 | |
| 9.71 | 26.87 | 6.31 | 17.52 | -17.07 | 156.27 | -38.34 | 113.78 | 0.6502 | 833.9 | 358.8 | |
| 5.57 | -4.00 | 3.64 | -4.00 | -17.35 | 155.96 | -38.65 | 114.05 | 0.6551 | 780.0 | 999999 | |
| 0.90 | 2.16 | 0.60 | 1.43 | -16.31 | 154.66 | -39.95 | 112.01 | 0.6670 | -749.2 | -572.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
