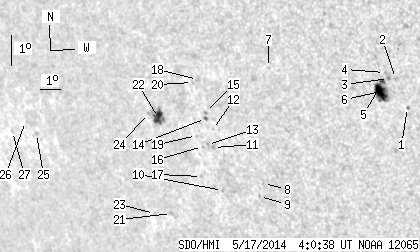

SDO HMI 2014-05-17 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.93 | 66.01 | 15.93 | 49.42 | -18.13 | 147.33 | -46.73 | 112.44 | 0.7470 | 17.3 | 39.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.84 | -18.14 | 154.50 | -39.56 | 114.82 | 0.6691 | -706.0 | -607.1 | |
| 0.00 | 1.98 | 0.00 | 1.31 | -17.22 | 154.25 | -39.81 | 113.39 | 0.6686 | -243.0 | -185.4 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -17.21 | 153.96 | -40.10 | 113.27 | 0.6720 | -829.0 | -740.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -17.02 | 153.84 | -40.22 | 112.94 | 0.6727 | -606.0 | -550.8 | |
| 1.35 | 22.56 | 0.90 | 15.16 | -17.30 | 153.68 | -40.37 | 113.28 | 0.6756 | -743.5 | -570.4 | |
| 11.77 | -5.00 | 7.92 | -5.00 | -17.61 | 153.52 | -40.54 | 113.66 | 0.6787 | -830.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.04 | -16.72 | 148.91 | -45.15 | 110.86 | 0.7289 | 495.0 | 388.4 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -20.36 | 147.40 | -46.65 | 115.16 | 0.7555 | 565.0 | 465.0 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -20.77 | 147.05 | -47.01 | 115.56 | 0.7604 | 612.0 | 541.1 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -20.52 | 145.36 | -48.70 | 114.72 | 0.7768 | 619.0 | 541.5 | |
| 0.00 | 1.80 | 0.00 | 1.40 | -19.15 | 145.48 | -48.57 | 113.03 | 0.7719 | 643.0 | 606.6 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -18.58 | 145.66 | -48.40 | 112.36 | 0.7687 | 607.0 | 444.5 | |
| 0.00 | 1.44 | 0.00 | 1.12 | -19.05 | 145.23 | -48.83 | 112.83 | 0.7742 | 537.0 | 524.1 | |
| 0.72 | 1.71 | 0.56 | 1.32 | -18.23 | 145.45 | -48.61 | 111.85 | 0.7700 | 574.5 | 463.5 | |
| 0.00 | 1.53 | 0.00 | 1.18 | -18.04 | 145.52 | -48.53 | 111.63 | 0.7688 | 660.0 | 598.3 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -19.10 | 144.96 | -49.09 | 112.82 | 0.7771 | 320.0 | 280.9 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -20.05 | 144.52 | -49.54 | 113.88 | 0.7839 | 352.0 | 308.8 | |
| 0.00 | 1.80 | 0.00 | 1.38 | -17.00 | 145.51 | -48.54 | 110.29 | 0.7664 | 513.0 | 471.9 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -18.75 | 144.81 | -49.25 | 112.34 | 0.7778 | 279.0 | 200.7 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -17.08 | 145.24 | -48.82 | 110.34 | 0.7695 | 462.0 | 384.8 | |
| 0.00 | 1.71 | 0.00 | 1.42 | -21.17 | 142.46 | -51.60 | 114.70 | 0.8066 | 92.0 | 110.5 | |
| 8.09 | 14.74 | 6.55 | 11.93 | -18.12 | 143.16 | -50.90 | 111.14 | 0.7930 | 656.4 | 451.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -21.14 | 141.57 | -52.48 | 114.43 | 0.8148 | 453.0 | 374.0 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -17.98 | 142.71 | -51.35 | 110.86 | 0.7972 | -172.0 | -135.1 | |
| 0.00 | 1.62 | 0.00 | 1.54 | -18.40 | 136.30 | -57.75 | 110.10 | 0.8566 | -578.0 | -510.7 | |
| 0.00 | 0.54 | 0.00 | 0.52 | -18.00 | 135.85 | -58.21 | 109.57 | 0.8600 | -444.0 | -387.7 | |
| 0.00 | 1.26 | 0.00 | 1.25 | -18.28 | 134.89 | -59.17 | 109.75 | 0.8683 | -331.0 | -315.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
