SDO HMI 2014-05-17 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.11 | 390.09 | 38.37 | 243.63 | -13.86 | 229.43 | 35.93 | 249.73 | 0.6100 | 296.4 | 300.7 | |
|
previous
or next observation for the same group /

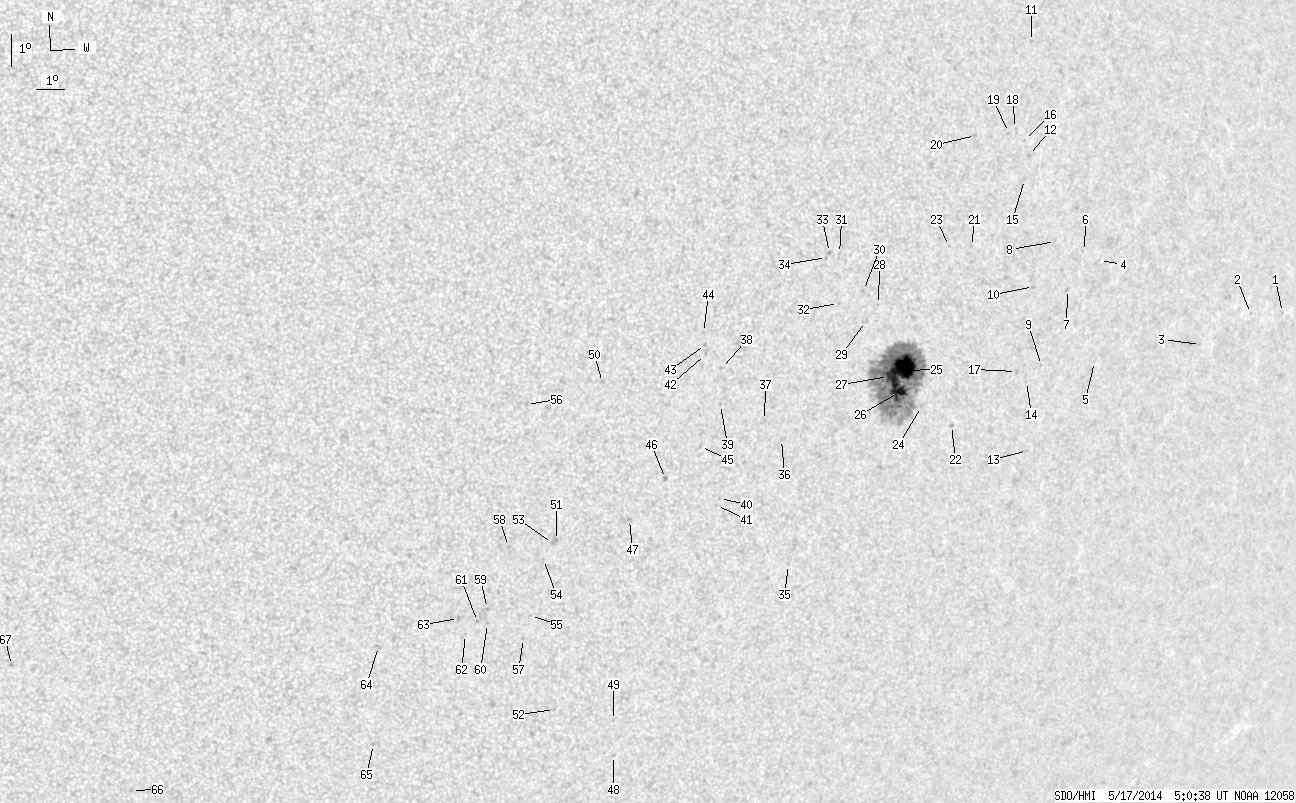

back to the solar disc SDO HMI 2014-05-17 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.67 | -11.23 | 246.47 | 52.96 | 257.79 | 0.8033 | 469.0 | 390.3 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -11.31 | 244.87 | 51.36 | 257.49 | 0.7868 | 464.0 | 420.8 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -12.33 | 242.69 | 49.18 | 255.86 | 0.7647 | 632.0 | 538.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.90 | 237.61 | 44.11 | 258.33 | 0.7024 | 625.0 | 578.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -13.00 | 238.01 | 44.50 | 254.05 | 0.7126 | 480.0 | 470.0 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -9.64 | 236.93 | 43.42 | 258.58 | 0.6936 | 451.0 | 459.0 | |
| 0.00 | 1.89 | 0.00 | 1.29 | -10.82 | 236.41 | 42.90 | 256.79 | 0.6891 | 686.0 | 567.0 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -9.37 | 235.67 | 42.16 | 258.76 | 0.6775 | 620.0 | 449.3 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -13.18 | 235.77 | 42.26 | 253.24 | 0.6861 | 562.0 | 490.1 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -10.77 | 234.98 | 41.47 | 256.57 | 0.6711 | 598.0 | 550.7 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -3.32 | 234.10 | 40.59 | 267.74 | 0.6524 | 634.0 | 482.7 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -6.78 | 234.24 | 40.73 | 262.44 | 0.6559 | 655.0 | 550.3 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -15.83 | 235.79 | 42.29 | 249.48 | 0.6935 | 436.0 | 353.9 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -13.69 | 235.25 | 41.74 | 252.36 | 0.6810 | 677.0 | 554.2 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -7.51 | 234.16 | 40.65 | 261.31 | 0.6556 | 631.0 | 469.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -6.33 | 234.03 | 40.53 | 263.11 | 0.6528 | 579.0 | 457.7 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -13.39 | 234.77 | 41.26 | 252.65 | 0.6744 | 150.0 | 211.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -5.97 | 233.64 | 40.13 | 263.62 | 0.6473 | 460.0 | 434.2 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -6.10 | 233.37 | 39.87 | 263.40 | 0.6439 | 574.0 | 426.2 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -6.23 | 232.08 | 38.57 | 263.07 | 0.6266 | 719.0 | 563.1 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -9.61 | 232.30 | 38.79 | 257.75 | 0.6343 | -653.0 | -475.6 | |
| 0.00 | 1.89 | 0.00 | 1.23 | -15.13 | 232.47 | 38.96 | 249.34 | 0.6510 | -736.0 | -540.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -9.63 | 231.43 | 37.93 | 257.52 | 0.6229 | -712.0 | -542.1 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -14.57 | 231.15 | 37.64 | 249.69 | 0.6325 | 271.0 | 110.9 | |
| 43.32 | 319.08 | 27.20 | 200.22 | -13.48 | 230.20 | 36.69 | 251.03 | 0.6166 | 1156.6 | 423.6 | |
| 13.48 | -25.00 | 8.48 | -25.00 | -14.16 | 230.16 | 36.66 | 249.94 | 0.6185 | 917.5 | 999999 | |
| 4.31 | -25.00 | 2.69 | -25.00 | -13.67 | 229.69 | 36.18 | 250.52 | 0.6106 | 1231.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -11.47 | 228.95 | 35.44 | 253.83 | 0.5939 | -494.0 | -465.8 | |
| 0.00 | 2.70 | 0.00 | 1.65 | -12.00 | 228.53 | 35.03 | 252.80 | 0.5899 | -557.0 | -473.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -11.05 | 228.32 | 34.82 | 254.32 | 0.5842 | -738.0 | -551.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -9.94 | 227.29 | 33.78 | 255.88 | 0.5668 | -616.0 | -447.6 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -11.47 | 227.44 | 33.93 | 253.30 | 0.5734 | -596.0 | -433.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -9.92 | 226.91 | 33.41 | 255.81 | 0.5616 | -790.0 | -698.4 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -10.07 | 226.82 | 33.31 | 255.50 | 0.5607 | -866.0 | -710.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -19.63 | 227.06 | 33.55 | 239.85 | 0.6042 | 604.0 | 482.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -15.72 | 225.98 | 32.47 | 245.44 | 0.5704 | -629.0 | -555.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -15.14 | 225.25 | 31.74 | 246.00 | 0.5580 | -487.0 | -501.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -13.56 | 223.44 | 29.93 | 247.74 | 0.5261 | -706.0 | -582.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -14.67 | 223.56 | 30.06 | 245.82 | 0.5332 | -697.0 | -537.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -17.61 | 224.02 | 30.51 | 241.08 | 0.5550 | -549.0 | -438.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -17.83 | 223.95 | 30.44 | 240.67 | 0.5554 | -659.0 | -492.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.14 | 222.81 | 29.30 | 248.15 | 0.5155 | -566.0 | -572.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.83 | 222.77 | 29.26 | 248.70 | 0.5135 | -819.0 | -672.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.46 | 222.65 | 29.14 | 249.33 | 0.5103 | -624.0 | -529.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -15.99 | 223.04 | 29.54 | 243.16 | 0.5332 | -640.0 | -532.6 | |
| 0.00 | 2.43 | 0.00 | 1.41 | -17.02 | 221.94 | 28.44 | 240.59 | 0.5247 | 949.0 | 684.3 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -18.33 | 220.87 | 27.36 | 237.46 | 0.5195 | -754.0 | -614.9 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -25.93 | 221.91 | 28.40 | 226.68 | 0.5901 | 530.0 | 412.5 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -24.78 | 221.61 | 28.11 | 228.02 | 0.5775 | 612.0 | 506.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -14.07 | 219.30 | 25.79 | 244.00 | 0.4714 | -617.0 | -507.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.03 | 218.38 | 24.87 | 233.95 | 0.4937 | -735.0 | -652.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.46 | 219.33 | 25.82 | 226.30 | 0.5505 | -683.0 | -562.1 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -19.13 | 218.25 | 24.74 | 233.65 | 0.4929 | -869.0 | -569.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -19.64 | 218.01 | 24.51 | 232.53 | 0.4942 | -567.0 | -453.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.43 | 217.86 | 24.35 | 229.39 | 0.5076 | -538.0 | -419.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.79 | 216.76 | 23.25 | 240.34 | 0.4411 | -550.0 | -368.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -22.18 | 217.74 | 24.23 | 228.08 | 0.5128 | -624.0 | -568.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -19.25 | 216.72 | 23.21 | 231.83 | 0.4753 | -731.0 | -675.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -21.23 | 216.29 | 22.79 | 227.97 | 0.4879 | -776.0 | -630.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.71 | 216.37 | 22.86 | 227.29 | 0.4933 | -606.0 | -497.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.65 | 216.01 | 22.50 | 226.95 | 0.4887 | -775.0 | -627.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -22.08 | 215.65 | 22.15 | 225.85 | 0.4888 | -767.0 | -589.3 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -21.57 | 215.33 | 21.82 | 226.27 | 0.4802 | -760.0 | -682.1 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -22.50 | 212.67 | 19.16 | 221.29 | 0.4615 | -679.0 | -564.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -25.70 | 212.99 | 19.49 | 217.11 | 0.5001 | -692.0 | -565.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -27.31 | 204.70 | 11.19 | 202.26 | 0.4572 | -714.0 | -598.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.22 | 200.32 | 6.81 | 197.06 | 0.3730 | -708.0 | -565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
