SDO HMI 2014-05-17 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.73 | 0.00 | 5.28 | -20.77 | 162.90 | -30.06 | 124.36 | 0.5697 | -405.2 | -360.3 | |
|
previous
or next observation for the same group /

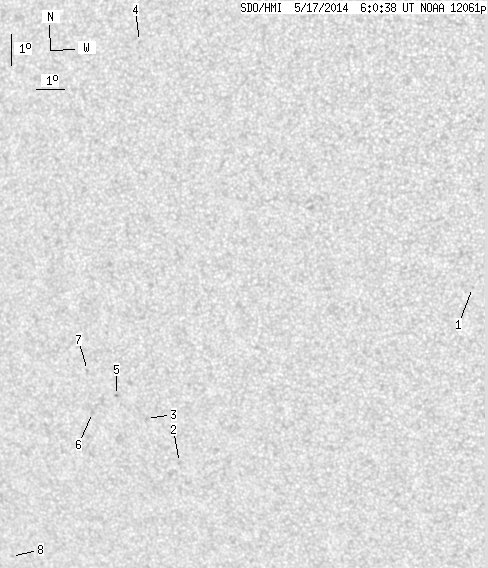

back to the solar disc SDO HMI 2014-05-17 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.19 | 174.76 | -18.20 | 132.68 | 0.4054 | 683.0 | 455.5 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -23.60 | 163.40 | -29.56 | 129.01 | 0.5840 | -559.0 | -429.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -22.15 | 162.50 | -30.46 | 126.14 | 0.5836 | -617.0 | -484.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -10.37 | 164.23 | -28.73 | 106.85 | 0.4961 | -630.0 | -511.5 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -21.39 | 161.54 | -31.42 | 124.26 | 0.5896 | -757.0 | -599.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -21.91 | 160.48 | -32.48 | 124.29 | 0.6052 | -96.0 | -144.9 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -20.56 | 160.63 | -32.33 | 122.37 | 0.5951 | -730.0 | -642.5 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -26.52 | 155.73 | -37.23 | 127.54 | 0.6850 | -536.0 | -421.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
