SDO HMI 2014-05-17 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.49 | 35.50 | 12.95 | 34.41 | -8.60 | 251.62 | 59.21 | 261.43 | 0.8608 | -211.4 | 75.3 | |
|
previous
or next observation for the same group /

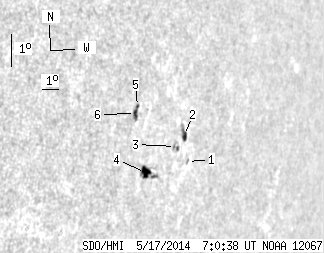

back to the solar disc SDO HMI 2014-05-17 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.56 | -8.91 | 253.47 | 61.06 | 261.15 | 0.8769 | 357.0 | 282.8 | |
| 3.42 | 7.46 | 3.45 | 7.52 | -8.13 | 253.07 | 60.66 | 262.03 | 0.8733 | 410.3 | 321.9 | |
| 0.00 | 5.03 | 0.00 | 5.02 | -8.48 | 252.60 | 60.18 | 261.61 | 0.8694 | 756.0 | 569.1 | |
| 7.28 | 14.74 | 6.93 | 14.08 | -9.34 | 251.00 | 58.59 | 260.54 | 0.8558 | -616.0 | -237.2 | |
| 0.63 | 6.74 | 0.58 | 6.23 | -7.35 | 250.06 | 57.65 | 262.83 | 0.8465 | -235.6 | -354.1 | |
| 2.16 | -5.00 | 1.99 | -5.00 | -7.56 | 249.99 | 57.58 | 262.57 | 0.8460 | -644.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
