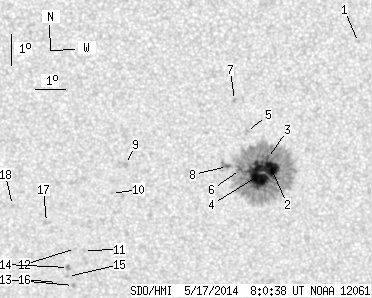

SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.75 | 301.24 | 29.16 | 160.59 | -24.02 | 191.78 | -0.09 | 179.88 | 0.3706 | 679.9 | 334.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | -19.77 | 195.25 | 3.39 | 190.56 | 0.3048 | -827.0 | -698.0 | |
| 17.89 | 279.10 | 9.52 | 148.67 | -23.82 | 192.46 | 0.60 | 181.49 | 0.3667 | 1392.8 | 417.8 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -23.49 | 192.33 | 0.46 | 181.18 | 0.3613 | 1303.0 | 999999 | |
| 33.53 | -2.00 | 17.87 | -2.00 | -24.05 | 192.03 | 0.16 | 180.41 | 0.3703 | 1235.8 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.61 | -22.62 | 191.64 | -0.23 | 179.39 | 0.3469 | 667.0 | 577.9 | |
| 2.07 | -2.00 | 1.10 | -2.00 | -23.85 | 191.43 | -0.43 | 178.92 | 0.3671 | 867.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -21.62 | 191.25 | -0.62 | 178.26 | 0.3306 | -904.0 | -801.4 | |
| 0.99 | -2.00 | 0.53 | -2.00 | -23.75 | 191.00 | -0.86 | 177.83 | 0.3657 | 927.5 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.53 | -23.68 | 187.62 | -4.24 | 169.42 | 0.3706 | -899.0 | -697.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -24.62 | 187.12 | -4.74 | 168.76 | 0.3872 | -731.0 | -638.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -26.50 | 186.09 | -5.77 | 167.57 | 0.4199 | -822.0 | -591.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -26.43 | 185.82 | -6.04 | 166.97 | 0.4198 | -759.0 | -584.0 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -27.67 | 185.69 | -6.18 | 167.41 | 0.4392 | -768.0 | -683.7 | |
| 0.00 | 2.43 | 0.00 | 1.33 | -27.06 | 185.55 | -6.32 | 166.79 | 0.4304 | -1059.0 | -870.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -27.36 | 185.50 | -6.37 | 166.86 | 0.4352 | -843.0 | -687.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -27.56 | 185.14 | -6.72 | 166.28 | 0.4395 | -718.0 | -651.6 | |
| 0.00 | 2.88 | 0.00 | 1.56 | -25.57 | 184.89 | -6.98 | 164.44 | 0.4102 | -619.0 | -570.9 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -25.00 | 183.77 | -8.09 | 161.64 | 0.4068 | -648.0 | -427.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
