SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.49 | 219.08 | 28.27 | 114.21 | 10.30 | 179.09 | -12.78 | 44.41 | 0.3109 | -233.6 | 67.6 | |
|
previous
or next observation for the same group /

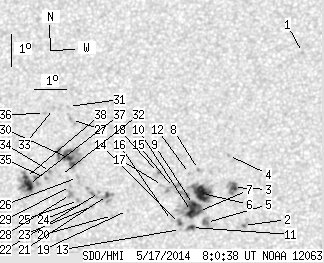

back to the solar disc SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.48 | 184.22 | -7.65 | 23.94 | 0.3189 | 796.0 | 653.9 | |
| 0.36 | 2.97 | 0.18 | 1.52 | 9.08 | 182.53 | -9.33 | 38.87 | 0.2563 | -1063.8 | -799.9 | |
| 3.42 | 10.88 | 1.76 | 5.60 | 10.26 | 182.19 | -9.68 | 37.09 | 0.2755 | -1068.9 | -831.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.26 | 182.00 | -9.87 | 35.48 | 0.2908 | -710.0 | -501.3 | |
| 0.00 | 6.74 | 0.00 | 3.47 | 9.18 | 181.38 | -10.49 | 41.90 | 0.2703 | -1187.0 | -926.9 | |
| 17.89 | 31.73 | 9.24 | 16.39 | 10.08 | 181.19 | -10.67 | 40.22 | 0.2837 | -1151.0 | -601.1 | |
| 3.60 | 38.74 | 1.85 | 20.00 | 9.53 | 181.12 | -10.75 | 41.74 | 0.2775 | -1211.2 | -576.4 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.83 | 181.07 | -10.79 | 38.85 | 0.2945 | -817.0 | -654.2 | |
| 5.30 | -7.00 | 2.74 | -7.00 | 9.74 | 180.95 | -10.91 | 41.64 | 0.2821 | -1215.7 | 999999 | |
| 7.64 | -7.00 | 3.94 | -7.00 | 9.53 | 180.90 | -10.97 | 42.31 | 0.2800 | -1104.1 | 999999 | |
| 1.98 | 5.30 | 1.02 | 2.73 | 9.03 | 180.91 | -10.95 | 43.51 | 0.2738 | -1124.2 | -852.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 10.71 | 180.79 | -11.07 | 39.83 | 0.2959 | -689.0 | -522.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.97 | 180.57 | -11.30 | 44.54 | 0.2771 | -801.0 | -593.0 | |
| 1.26 | 2.34 | 0.65 | 1.21 | 9.16 | 180.53 | -11.33 | 44.16 | 0.2797 | -948.1 | -768.5 | |
| 0.00 | 7.28 | 0.00 | 3.77 | 10.28 | 180.31 | -11.56 | 42.02 | 0.2959 | -691.0 | -648.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.26 | 180.28 | -11.59 | 44.55 | 0.2838 | -528.0 | -358.4 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 10.34 | 179.96 | -11.91 | 42.71 | 0.3006 | -9.0 | -176.9 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 10.75 | 179.82 | -12.05 | 42.12 | 0.3071 | -927.0 | -672.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.58 | 178.88 | -12.98 | 46.98 | 0.3043 | -745.0 | -562.6 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.43 | 178.41 | -13.45 | 48.35 | 0.3084 | 920.0 | 724.8 | |
| 1.26 | 13.93 | 0.66 | 7.28 | 10.05 | 178.23 | -13.63 | 47.23 | 0.3175 | -181.0 | 533.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.15 | 177.97 | -13.89 | 47.54 | 0.3218 | -136.0 | -155.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 9.72 | 177.74 | -14.13 | 49.03 | 0.3200 | 1007.0 | 771.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 9.84 | 177.54 | -14.32 | 49.12 | 0.3238 | 917.0 | 797.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 9.91 | 177.32 | -14.55 | 49.40 | 0.3273 | 940.0 | 778.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 10.62 | 177.25 | -14.61 | 47.88 | 0.3358 | 856.0 | 670.0 | |
| 0.00 | 5.30 | 0.00 | 2.81 | 12.44 | 176.96 | -14.90 | 44.57 | 0.3594 | 751.0 | 608.8 | |
| 0.00 | 3.95 | 0.00 | 2.08 | 10.10 | 177.05 | -14.81 | 49.46 | 0.3326 | 1149.0 | 924.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.35 | 177.04 | -14.82 | 48.91 | 0.3354 | 899.0 | 799.3 | |
| 1.98 | 32.45 | 1.04 | 17.12 | 11.22 | 176.97 | -14.90 | 47.11 | 0.3457 | 1228.1 | 695.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.85 | 176.84 | -15.02 | 43.98 | 0.3654 | 723.0 | 564.8 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.69 | 176.71 | -15.16 | 48.76 | 0.3432 | 666.0 | 490.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 12.79 | 176.36 | -15.50 | 44.99 | 0.3703 | 564.0 | 459.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 10.82 | 176.38 | -15.49 | 49.07 | 0.3486 | 851.0 | 716.9 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 10.60 | 176.26 | -15.60 | 49.76 | 0.3478 | 1123.0 | 892.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 12.64 | 176.08 | -15.78 | 45.80 | 0.3718 | 852.0 | 608.5 | |
| 8.27 | 29.39 | 4.38 | 15.56 | 10.43 | 175.69 | -16.17 | 51.16 | 0.3532 | 1123.3 | 668.1 | |
| 1.53 | -37.00 | 0.81 | -37.00 | 10.64 | 175.59 | -16.28 | 50.85 | 0.3568 | 856.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
