SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.32 | 0.00 | 6.73 | 8.45 | 196.44 | 4.57 | 337.85 | 0.2098 | -111.8 | -152.4 | |
|
previous
or next observation for the same group /

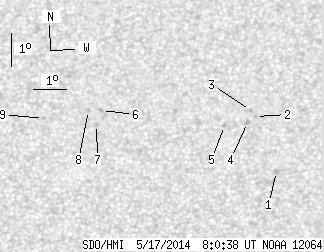

back to the solar disc SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.18 | 7.07 | 199.13 | 7.26 | 322.66 | 0.2078 | -822.0 | -707.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.77 | 198.51 | 6.65 | 329.42 | 0.2259 | -841.0 | -564.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.95 | 198.36 | 6.50 | 330.40 | 0.2273 | -796.0 | -615.8 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 8.58 | 198.26 | 6.40 | 329.95 | 0.2210 | -1014.0 | -753.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.48 | 197.55 | 5.69 | 332.57 | 0.2137 | -906.0 | -755.8 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 8.94 | 193.78 | 1.91 | 350.50 | 0.2005 | 898.0 | 686.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.51 | 193.62 | 1.76 | 350.92 | 0.1927 | 923.0 | 822.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.94 | 193.38 | 1.51 | 352.46 | 0.1995 | 754.0 | 575.9 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.70 | 192.00 | 0.13 | 359.33 | 0.1936 | 798.0 | 632.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
