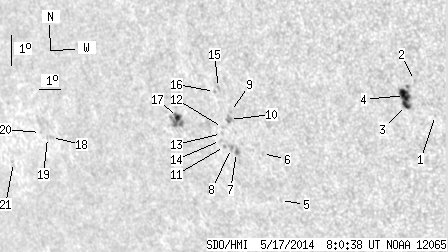

SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.11 | 57.28 | 10.25 | 42.15 | -18.17 | 146.17 | -45.70 | 112.85 | 0.7363 | -29.3 | 213.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.17 | -18.24 | 154.45 | -37.42 | 115.95 | 0.6441 | -464.0 | -563.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -17.12 | 153.88 | -37.99 | 114.04 | 0.6463 | -715.0 | -589.7 | |
| 3.33 | 17.62 | 2.18 | 11.51 | -17.89 | 153.36 | -38.50 | 114.95 | 0.6557 | -777.2 | -559.4 | |
| 8.54 | -3.00 | 5.58 | -3.00 | -17.58 | 153.36 | -38.50 | 114.48 | 0.6544 | -849.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -20.74 | 147.02 | -44.85 | 116.30 | 0.7379 | 595.0 | 467.7 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -19.23 | 146.75 | -45.12 | 114.23 | 0.7359 | 503.0 | 447.6 | |
| 0.63 | 2.70 | 0.47 | 2.00 | -19.16 | 145.57 | -46.29 | 113.75 | 0.7483 | 701.7 | 587.1 | |
| 0.00 | 2.52 | 0.00 | 1.88 | -19.03 | 145.39 | -46.48 | 113.52 | 0.7499 | 648.0 | 526.7 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -17.87 | 145.75 | -46.11 | 112.12 | 0.7427 | 649.0 | 533.4 | |
| 0.00 | 4.22 | 0.00 | 3.13 | -18.12 | 145.62 | -46.24 | 112.40 | 0.7448 | 707.0 | 595.9 | |
| 0.00 | 1.44 | 0.00 | 1.08 | -18.96 | 145.09 | -46.78 | 113.34 | 0.7529 | 520.0 | 384.9 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -18.36 | 145.21 | -46.65 | 112.60 | 0.7499 | 543.0 | 473.7 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -18.54 | 145.10 | -46.77 | 112.80 | 0.7516 | 494.0 | 401.1 | |
| 0.00 | 1.53 | 0.00 | 1.15 | -18.76 | 144.97 | -46.89 | 113.05 | 0.7536 | 441.0 | 342.8 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -17.10 | 145.45 | -46.41 | 111.02 | 0.7439 | 552.0 | 515.2 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -17.22 | 145.23 | -46.64 | 111.11 | 0.7467 | 410.0 | 379.2 | |
| 2.61 | 13.84 | 2.02 | 10.72 | -17.98 | 143.21 | -48.66 | 111.54 | 0.7700 | 772.8 | 509.7 | |
| 0.00 | 1.89 | 0.00 | 1.70 | -18.39 | 136.45 | -55.41 | 110.53 | 0.8363 | -605.0 | -515.9 | |
| 0.00 | 1.26 | 0.00 | 1.14 | -18.39 | 136.23 | -55.64 | 110.48 | 0.8383 | -446.0 | -501.8 | |
| 0.00 | 0.72 | 0.00 | 0.65 | -18.22 | 135.91 | -55.96 | 110.22 | 0.8409 | -588.0 | -553.8 | |
| 0.00 | 1.17 | 0.00 | 1.13 | -19.10 | 133.85 | -58.02 | 110.89 | 0.8599 | -229.0 | -266.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
