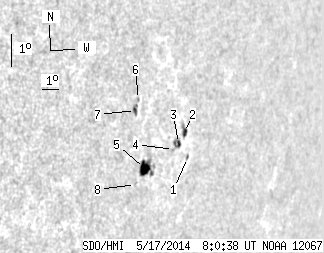

SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.02 | 39.19 | 14.68 | 38.50 | -8.75 | 251.54 | 59.68 | 261.27 | 0.8650 | -185.9 | 91.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.31 | -8.92 | 253.50 | 61.64 | 261.17 | 0.8817 | 242.0 | 192.6 | |
| 2.25 | 6.02 | 2.31 | 6.18 | -8.16 | 253.10 | 61.24 | 262.01 | 0.8782 | 430.1 | 340.0 | |
| 1.71 | 5.48 | 1.74 | 5.58 | -8.51 | 252.81 | 60.95 | 261.60 | 0.8759 | 599.1 | 564.8 | |
| 0.00 | 1.08 | 0.00 | 1.09 | -8.71 | 252.55 | 60.68 | 261.37 | 0.8737 | 446.0 | 381.3 | |
| 9.80 | 18.70 | 9.45 | 18.09 | -9.35 | 250.93 | 59.07 | 260.55 | 0.8601 | -563.7 | -32.9 | |
| 0.00 | 1.17 | 0.00 | 1.10 | -7.26 | 250.08 | 58.21 | 262.95 | 0.8517 | -214.0 | -207.9 | |
| 1.26 | 4.76 | 1.18 | 4.46 | -7.60 | 249.97 | 58.11 | 262.55 | 0.8508 | -637.4 | -464.9 | |
| 0.00 | 0.72 | 0.00 | 0.69 | -9.85 | 250.53 | 58.67 | 259.94 | 0.8568 | 97.0 | 108.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
