SDO HMI 2014-05-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.75 | 221.62 | 28.91 | 115.29 | 10.32 | 179.04 | -12.27 | 43.20 | 0.3053 | -239.5 | 65.2 | |
|
previous
or next observation for the same group /

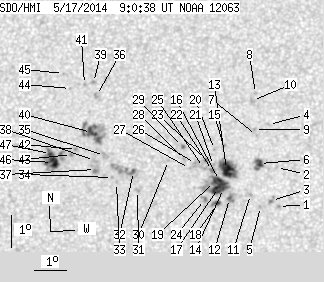

back to the solar disc SDO HMI 2014-05-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.92 | 182.83 | -8.49 | 36.65 | 0.2454 | -940.0 | -774.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 10.13 | 182.74 | -8.58 | 34.13 | 0.2629 | -649.0 | -409.4 | |
| 0.00 | 3.06 | 0.00 | 1.56 | 9.11 | 182.61 | -8.71 | 36.90 | 0.2502 | -1046.0 | -832.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 11.47 | 182.45 | -8.87 | 32.25 | 0.2844 | 881.0 | 684.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.93 | 182.27 | -9.05 | 38.40 | 0.2513 | -230.0 | -134.9 | |
| 3.69 | 8.45 | 1.90 | 4.35 | 10.26 | 182.20 | -9.11 | 35.47 | 0.2699 | -1004.0 | -879.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 11.13 | 182.08 | -9.23 | 33.98 | 0.2830 | -664.0 | -455.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.45 | 182.01 | -9.31 | 31.69 | 0.3020 | -660.0 | -457.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.32 | 182.01 | -9.30 | 33.80 | 0.2862 | -572.0 | -509.4 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 12.23 | 181.92 | -9.40 | 32.32 | 0.2997 | -760.0 | -564.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 9.30 | 181.95 | -9.37 | 38.44 | 0.2596 | -664.0 | -478.8 | |
| 0.99 | 5.66 | 0.51 | 2.91 | 9.18 | 181.30 | -10.02 | 40.61 | 0.2651 | -1160.7 | -878.1 | |
| 13.39 | 24.27 | 6.90 | 12.51 | 10.08 | 181.18 | -10.14 | 38.79 | 0.2779 | -1209.5 | -806.9 | |
| 2.88 | 35.05 | 1.48 | 18.06 | 9.50 | 181.10 | -10.22 | 40.39 | 0.2712 | -1172.4 | -484.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.83 | 181.06 | -10.26 | 37.45 | 0.2889 | -898.0 | -747.1 | |
| 3.33 | -14.00 | 1.71 | -14.00 | 9.74 | 180.97 | -10.35 | 40.16 | 0.2758 | -1223.1 | 999999 | |
| 8.81 | -14.00 | 4.53 | -14.00 | 9.53 | 180.94 | -10.37 | 40.74 | 0.2733 | -1140.2 | 999999 | |
| 1.62 | 4.40 | 0.83 | 2.26 | 9.03 | 180.93 | -10.39 | 42.02 | 0.2673 | -1112.2 | -838.5 | |
| 2.61 | -14.00 | 1.34 | -14.00 | 9.72 | 180.81 | -10.50 | 40.65 | 0.2771 | -983.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 10.71 | 180.78 | -10.54 | 38.46 | 0.2902 | -701.0 | -488.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 10.21 | 180.77 | -10.55 | 39.61 | 0.2839 | -671.0 | -592.6 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 10.06 | 180.74 | -10.58 | 40.04 | 0.2822 | -946.0 | -867.4 | |
| 0.36 | 1.53 | 0.19 | 0.79 | 10.40 | 180.51 | -10.81 | 39.85 | 0.2891 | -811.8 | -669.7 | |
| 0.00 | 2.97 | 0.00 | 1.53 | 9.16 | 180.52 | -10.80 | 42.80 | 0.2735 | -996.0 | -826.7 | |
| 0.00 | 2.97 | 0.00 | 1.53 | 10.15 | 180.45 | -10.86 | 40.56 | 0.2866 | -613.0 | -488.3 | |
| 0.00 | 3.60 | 0.00 | 1.86 | 10.28 | 180.20 | -11.12 | 40.92 | 0.2909 | -650.0 | -548.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.13 | 180.02 | -11.30 | 41.74 | 0.2911 | -727.0 | -578.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 10.41 | 179.85 | -11.47 | 41.51 | 0.2964 | -582.0 | -404.1 | |
| 0.36 | 1.71 | 0.19 | 0.89 | 10.81 | 179.77 | -11.55 | 40.79 | 0.3023 | -861.2 | -739.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.38 | 179.35 | -11.97 | 42.78 | 0.3017 | 679.0 | 500.6 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 9.46 | 178.40 | -12.91 | 47.13 | 0.3021 | 860.0 | 711.9 | |
| 0.81 | 17.89 | 0.42 | 9.33 | 10.05 | 178.25 | -13.06 | 46.03 | 0.3106 | -296.0 | 395.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.72 | 177.73 | -13.59 | 47.95 | 0.3132 | 882.0 | 722.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.87 | 177.60 | -13.72 | 47.85 | 0.3166 | 912.0 | 725.6 | |
| 0.00 | 4.58 | 0.00 | 2.40 | 10.56 | 177.31 | -14.00 | 46.83 | 0.3276 | 905.0 | 700.9 | |
| 0.00 | 2.43 | 0.00 | 1.28 | 12.44 | 176.96 | -14.35 | 43.52 | 0.3531 | 785.0 | 735.6 | |
| 0.00 | 6.11 | 0.00 | 3.20 | 10.13 | 177.05 | -14.27 | 48.36 | 0.3261 | 992.0 | 817.9 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 10.41 | 177.00 | -14.32 | 47.80 | 0.3297 | 775.0 | 729.8 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 12.85 | 176.84 | -14.47 | 42.95 | 0.3592 | 881.0 | 642.5 | |
| 5.03 | 31.82 | 2.65 | 16.75 | 11.28 | 176.86 | -14.45 | 46.12 | 0.3410 | 1068.5 | 674.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.79 | 176.56 | -14.76 | 43.62 | 0.3617 | 817.0 | 597.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 10.76 | 176.41 | -14.91 | 48.15 | 0.3407 | 850.0 | 744.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 10.60 | 176.26 | -15.06 | 48.78 | 0.3410 | 1030.0 | 863.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 12.67 | 176.11 | -15.20 | 44.69 | 0.3654 | 598.0 | 580.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 13.14 | 175.86 | -15.46 | 44.23 | 0.3737 | 755.0 | 548.5 | |
| 9.35 | 29.66 | 4.93 | 15.66 | 10.36 | 175.66 | -15.65 | 50.41 | 0.3459 | 1088.1 | 669.7 | |
| 2.52 | -46.00 | 1.33 | -46.00 | 10.64 | 175.59 | -15.73 | 49.92 | 0.3498 | 837.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
