SDO HMI 2014-05-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.29 | 53.86 | 10.36 | 39.70 | -18.18 | 145.54 | -45.78 | 112.87 | 0.7369 | -27.7 | 197.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

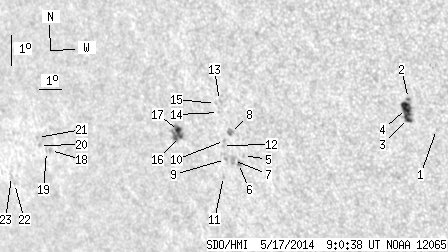

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | -18.27 | 154.37 | -36.94 | 116.25 | 0.6386 | -552.0 | -559.3 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -17.27 | 153.50 | -37.82 | 114.35 | 0.6450 | -561.0 | -530.5 | |
| 3.24 | 14.65 | 2.10 | 9.51 | -17.90 | 153.30 | -38.02 | 115.18 | 0.6499 | -707.3 | -551.0 | |
| 8.18 | -3.00 | 5.31 | -3.00 | -17.58 | 153.34 | -37.98 | 114.74 | 0.6481 | -873.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -18.87 | 145.97 | -45.35 | 113.68 | 0.7374 | 436.0 | 397.4 | |
| 0.45 | 2.34 | 0.33 | 1.72 | -19.11 | 145.65 | -45.67 | 113.89 | 0.7415 | 793.6 | 604.5 | |
| 0.00 | 3.87 | 0.00 | 2.85 | -19.01 | 145.45 | -45.86 | 113.70 | 0.7433 | 681.0 | 481.5 | |
| 0.00 | 4.04 | 0.00 | 2.96 | -18.13 | 145.62 | -45.69 | 112.59 | 0.7389 | 791.0 | 632.6 | |
| 0.00 | 1.53 | 0.00 | 1.13 | -18.97 | 145.10 | -46.22 | 113.53 | 0.7470 | 541.0 | 420.7 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -18.37 | 145.26 | -46.05 | 112.80 | 0.7435 | 581.0 | 466.3 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -19.50 | 144.81 | -46.51 | 114.13 | 0.7516 | 380.0 | 342.6 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -18.53 | 145.12 | -46.20 | 112.96 | 0.7455 | 446.0 | 426.5 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -17.11 | 145.46 | -45.86 | 111.20 | 0.7380 | 656.0 | 569.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -17.49 | 145.29 | -46.03 | 111.64 | 0.7408 | 509.0 | 403.9 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -17.20 | 145.24 | -46.07 | 111.25 | 0.7405 | 406.0 | 359.9 | |
| 0.27 | 12.94 | 0.21 | 9.92 | -18.18 | 143.26 | -48.06 | 111.97 | 0.7643 | 695.7 | 512.3 | |
| 3.15 | -16.00 | 2.41 | -16.00 | -17.99 | 143.23 | -48.08 | 111.72 | 0.7641 | 762.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.51 | -18.41 | 136.46 | -54.86 | 110.66 | 0.8313 | -581.0 | -548.8 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -18.43 | 136.22 | -55.09 | 110.64 | 0.8335 | -581.0 | -544.9 | |
| 0.00 | 1.35 | 0.00 | 1.21 | -18.23 | 135.93 | -55.39 | 110.35 | 0.8359 | -555.0 | -520.1 | |
| 0.00 | 1.08 | 0.00 | 0.97 | -17.98 | 135.94 | -55.38 | 110.05 | 0.8354 | -393.0 | -338.8 | |
| 0.00 | 0.72 | 0.00 | 0.68 | -19.37 | 133.88 | -57.44 | 111.30 | 0.8555 | -246.0 | -254.6 | |
| 0.00 | 0.99 | 0.00 | 0.94 | -19.15 | 133.82 | -57.50 | 111.03 | 0.8556 | -408.0 | -346.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
