SDO HMI 2014-05-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.76 | 387.93 | 39.57 | 250.02 | -13.93 | 228.97 | 38.20 | 250.29 | 0.6391 | 286.1 | 248.7 | |
|
previous
or next observation for the same group /

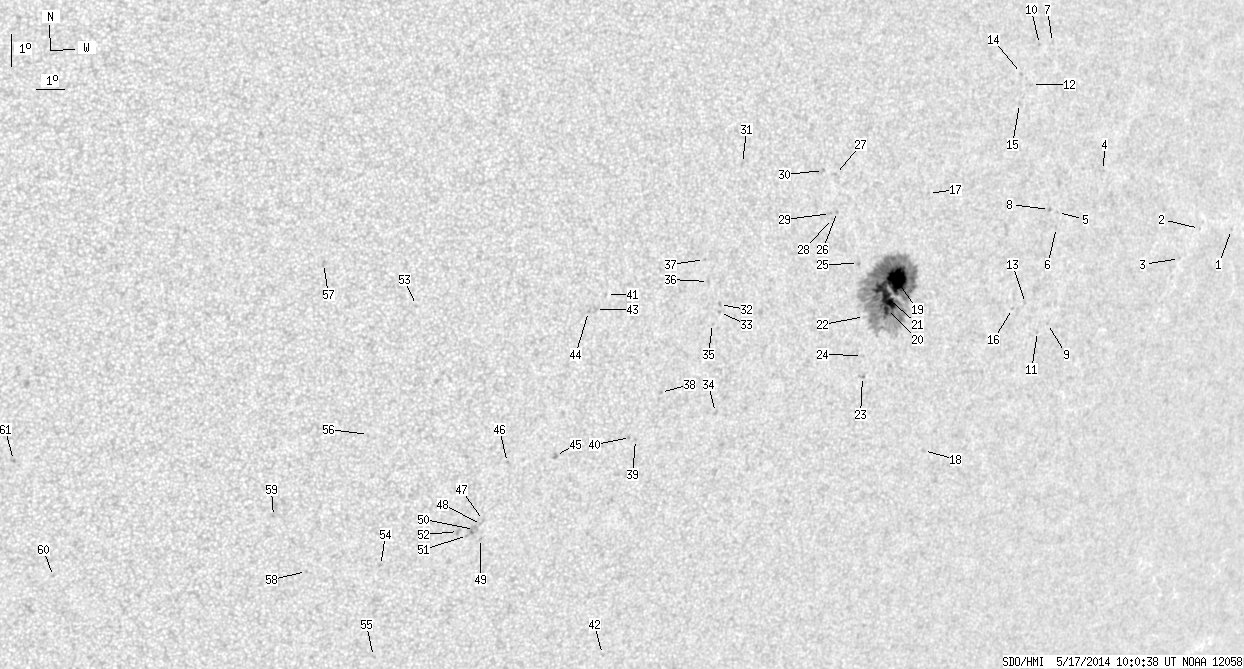

back to the solar disc SDO HMI 2014-05-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.69 | -11.31 | 245.17 | 54.40 | 257.83 | 0.8178 | 458.0 | 397.1 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -11.33 | 243.50 | 52.73 | 257.61 | 0.8011 | 387.0 | 420.6 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -12.28 | 242.74 | 51.97 | 256.32 | 0.7943 | 556.0 | 471.2 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -9.70 | 238.48 | 47.71 | 259.09 | 0.7449 | 568.0 | 510.2 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -11.05 | 236.66 | 45.89 | 256.99 | 0.7256 | 566.0 | 506.2 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -11.51 | 236.71 | 45.94 | 256.37 | 0.7269 | 591.0 | 466.2 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -5.88 | 235.67 | 44.90 | 264.08 | 0.7082 | 517.0 | 429.8 | |
| 0.00 | 1.62 | 0.00 | 1.15 | -10.97 | 236.29 | 45.52 | 257.04 | 0.7211 | 680.0 | 651.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -14.47 | 237.02 | 46.25 | 252.42 | 0.7360 | 385.0 | 326.9 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -5.95 | 235.12 | 44.35 | 263.94 | 0.7014 | 600.0 | 482.3 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -14.73 | 236.63 | 45.86 | 251.98 | 0.7322 | 513.0 | 388.8 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -7.18 | 234.91 | 44.14 | 262.17 | 0.6998 | 558.0 | 511.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -13.88 | 235.88 | 45.10 | 252.94 | 0.7216 | 565.0 | 470.4 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -6.86 | 234.45 | 43.68 | 262.59 | 0.6937 | 731.0 | 615.1 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -7.77 | 234.47 | 43.70 | 261.28 | 0.6949 | 185.0 | 237.7 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -14.05 | 235.34 | 44.57 | 252.58 | 0.7158 | 519.0 | 462.1 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -10.61 | 231.11 | 40.34 | 256.51 | 0.6565 | -536.0 | -364.2 | |
| 0.00 | 2.07 | 0.00 | 1.43 | -18.58 | 232.71 | 41.94 | 245.50 | 0.6985 | 81.0 | 205.7 | |
| 32.45 | 306.85 | 21.16 | 199.69 | -13.29 | 230.28 | 39.51 | 252.26 | 0.6524 | 1148.8 | 396.2 | |
| 3.77 | -19.00 | 2.46 | -19.00 | -14.22 | 230.06 | 39.29 | 250.78 | 0.6524 | 930.0 | 999999 | |
| 24.54 | -19.00 | 15.95 | -19.00 | -13.82 | 229.94 | 39.17 | 251.34 | 0.6497 | 1002.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -14.46 | 229.23 | 38.46 | 250.13 | 0.6426 | 267.0 | 268.7 | |
| 0.00 | 2.16 | 0.00 | 1.41 | -16.33 | 229.56 | 38.78 | 247.46 | 0.6531 | -535.0 | -464.4 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -15.67 | 229.41 | 38.63 | 248.37 | 0.6489 | 225.0 | 212.3 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -12.83 | 228.68 | 37.91 | 252.44 | 0.6306 | 802.0 | 635.7 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -11.25 | 227.60 | 36.83 | 254.59 | 0.6121 | -603.0 | -484.3 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -10.12 | 227.37 | 36.59 | 256.36 | 0.6061 | -745.0 | -635.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -11.47 | 227.44 | 36.67 | 254.19 | 0.6105 | -606.0 | -448.8 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -11.32 | 227.34 | 36.57 | 254.40 | 0.6088 | -759.0 | -653.4 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -10.01 | 226.89 | 36.12 | 256.41 | 0.5994 | -730.0 | -652.1 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -9.87 | 223.84 | 33.07 | 255.75 | 0.5568 | -761.0 | -529.8 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -14.22 | 223.58 | 32.81 | 248.10 | 0.5683 | -740.0 | -606.9 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -14.46 | 223.62 | 32.85 | 247.70 | 0.5699 | -669.0 | -526.5 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -17.58 | 224.05 | 33.28 | 242.84 | 0.5902 | -450.0 | -445.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -14.81 | 223.42 | 32.65 | 247.02 | 0.5687 | -480.0 | -463.9 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -13.51 | 223.07 | 32.29 | 249.04 | 0.5584 | -743.0 | -616.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -12.84 | 222.82 | 32.05 | 250.09 | 0.5524 | -710.0 | -576.5 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -17.00 | 221.87 | 31.10 | 242.45 | 0.5593 | 776.0 | 636.7 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -18.49 | 221.23 | 30.46 | 239.55 | 0.5598 | -755.0 | -517.4 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -18.43 | 221.03 | 30.26 | 239.51 | 0.5570 | -702.0 | -744.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -13.99 | 219.43 | 28.66 | 246.15 | 0.5109 | -785.0 | -551.8 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -25.43 | 221.63 | 30.86 | 229.44 | 0.6119 | 182.0 | 252.0 | |
| 0.00 | 3.69 | 0.00 | 2.12 | -14.46 | 219.10 | 28.33 | 245.06 | 0.5089 | -633.0 | -566.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -14.53 | 218.86 | 28.09 | 244.77 | 0.5059 | -789.0 | -636.5 | |
| 0.00 | 3.15 | 0.00 | 1.83 | -19.05 | 218.40 | 27.63 | 236.42 | 0.5282 | -639.0 | -639.0 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -19.30 | 216.71 | 25.94 | 234.49 | 0.5093 | -754.0 | -604.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.16 | 216.18 | 25.41 | 230.89 | 0.5178 | -757.0 | -676.0 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.29 | 216.13 | 25.36 | 230.63 | 0.5183 | -619.0 | -585.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -21.74 | 216.18 | 25.41 | 229.97 | 0.5226 | -572.0 | -486.9 | |
| 0.00 | 5.93 | 0.00 | 3.43 | -21.45 | 215.91 | 25.14 | 230.15 | 0.5171 | -772.0 | -701.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -21.65 | 215.69 | 24.92 | 229.61 | 0.5163 | -741.0 | -599.8 | |
| 0.00 | 2.07 | 0.00 | 1.19 | -21.53 | 215.35 | 24.58 | 229.44 | 0.5113 | -941.0 | -773.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.43 | 212.90 | 22.13 | 239.90 | 0.4234 | -602.0 | -430.4 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -22.66 | 212.77 | 21.99 | 224.72 | 0.4932 | -875.0 | -562.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -25.63 | 213.05 | 22.28 | 220.72 | 0.5262 | -629.0 | -585.9 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.49 | 211.73 | 20.96 | 230.50 | 0.4415 | -682.0 | -615.5 | |
| 0.00 | 2.97 | 0.00 | 1.58 | -13.18 | 209.68 | 18.91 | 239.06 | 0.3695 | -781.0 | -584.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -22.89 | 210.20 | 19.43 | 221.03 | 0.4687 | -755.0 | -545.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -21.13 | 208.82 | 18.05 | 221.82 | 0.4352 | -849.0 | -622.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -23.13 | 201.58 | 10.81 | 205.94 | 0.3960 | -801.0 | -646.3 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -19.42 | 200.01 | 9.24 | 207.31 | 0.3314 | -879.0 | -722.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
