SDO HMI 2014-05-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.83 | 319.55 | 24.95 | 170.39 | -23.99 | 191.79 | 1.02 | 182.65 | 0.3708 | 515.7 | 306.4 | |
|
previous
or next observation for the same group /

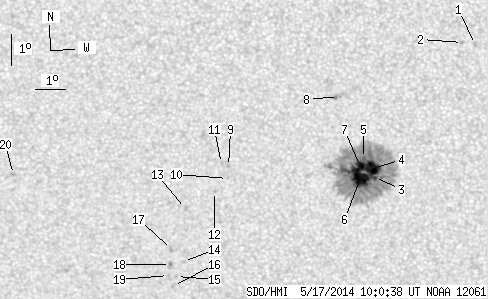

back to the solar disc SDO HMI 2014-05-17 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.03 | -19.85 | 195.68 | 4.91 | 195.02 | 0.3119 | -856.0 | -657.0 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -19.79 | 195.26 | 4.49 | 193.84 | 0.3091 | -930.0 | -607.3 | |
| 1.80 | 292.65 | 0.96 | 155.97 | -24.13 | 192.46 | 1.69 | 184.17 | 0.3728 | 935.6 | 411.4 | |
| 16.00 | -3.00 | 8.52 | -3.00 | -23.84 | 192.39 | 1.62 | 184.06 | 0.3680 | 1414.3 | 999999 | |
| 0.99 | -3.00 | 0.53 | -3.00 | -23.52 | 192.09 | 1.32 | 183.36 | 0.3624 | 1144.6 | 999999 | |
| 20.40 | -3.00 | 10.88 | -3.00 | -24.13 | 192.00 | 1.23 | 183.02 | 0.3724 | 1192.1 | 999999 | |
| 7.64 | -3.00 | 4.06 | -3.00 | -23.78 | 192.00 | 1.23 | 183.07 | 0.3665 | 1474.5 | 999999 | |
| 0.00 | 5.57 | 0.00 | 2.92 | -21.51 | 191.26 | 0.49 | 181.39 | 0.3289 | -780.0 | -660.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -23.77 | 187.62 | -3.15 | 172.14 | 0.3694 | -902.0 | -765.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -24.16 | 187.58 | -3.19 | 172.19 | 0.3758 | -663.0 | -515.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -23.67 | 187.39 | -3.38 | 171.54 | 0.3683 | -801.0 | -598.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -24.58 | 187.13 | -3.64 | 171.31 | 0.3836 | -721.0 | -647.0 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -25.14 | 186.14 | -4.63 | 169.30 | 0.3951 | -811.0 | -612.6 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -26.89 | 186.00 | -4.77 | 169.86 | 0.4230 | -526.0 | -465.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -27.39 | 185.74 | -5.03 | 169.56 | 0.4315 | -814.0 | -684.0 | |
| 0.00 | 2.61 | 0.00 | 1.43 | -27.69 | 185.62 | -5.15 | 169.47 | 0.4365 | -661.0 | -559.9 | |
| 0.00 | 2.25 | 0.00 | 1.22 | -26.49 | 185.61 | -5.16 | 168.85 | 0.4179 | -690.0 | -672.0 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -26.99 | 185.55 | -5.22 | 168.98 | 0.4258 | -1013.0 | -826.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -27.36 | 185.47 | -5.30 | 168.99 | 0.4317 | -839.0 | -654.1 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -23.99 | 180.43 | -10.34 | 156.00 | 0.4050 | -903.0 | -670.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
