SDO HMI 2014-05-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.99 | 202.61 | 29.98 | 105.05 | 10.33 | 178.93 | -11.29 | 40.78 | 0.2942 | -205.7 | 87.6 | |
|
previous
or next observation for the same group /

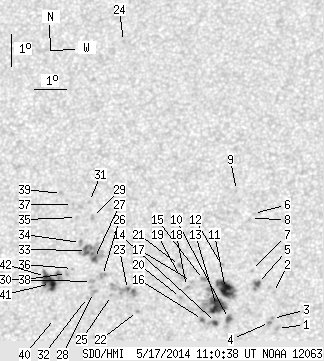

back to the solar disc SDO HMI 2014-05-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.05 | 8.86 | 182.85 | -7.37 | 33.03 | 0.2336 | -898.0 | -629.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.98 | 182.71 | -7.52 | 31.05 | 0.2509 | -775.0 | -632.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 9.17 | 182.69 | -7.53 | 32.87 | 0.2395 | -732.0 | -571.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.05 | 182.60 | -7.62 | 33.47 | 0.2386 | -1116.0 | -864.8 | |
| 2.07 | 5.39 | 1.06 | 2.76 | 10.26 | 182.20 | -8.02 | 32.11 | 0.2594 | -1098.3 | -960.3 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.45 | 182.02 | -8.21 | 28.58 | 0.2926 | -615.0 | -432.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.67 | 182.00 | -8.22 | 31.90 | 0.2670 | -703.0 | -487.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 12.29 | 181.93 | -8.30 | 29.11 | 0.2910 | -516.0 | -448.0 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 13.17 | 181.46 | -8.76 | 28.97 | 0.3077 | -558.0 | -402.3 | |
| 1.80 | 6.38 | 0.92 | 3.27 | 9.18 | 181.33 | -8.90 | 37.32 | 0.2529 | -1138.3 | -850.1 | |
| 17.97 | 25.43 | 9.24 | 13.07 | 10.11 | 181.21 | -9.01 | 35.51 | 0.2667 | -1110.3 | -715.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 10.86 | 181.06 | -9.16 | 34.34 | 0.2784 | -785.0 | -576.2 | |
| 15.73 | 39.27 | 8.07 | 20.17 | 9.59 | 180.94 | -9.28 | 37.51 | 0.2623 | -1159.8 | -540.9 | |
| 1.44 | 4.49 | 0.74 | 2.30 | 9.06 | 180.92 | -9.30 | 38.84 | 0.2555 | -1121.2 | -861.6 | |
| 0.00 | 2.79 | 0.00 | 1.44 | 10.40 | 180.51 | -9.71 | 36.90 | 0.2775 | -825.0 | -715.0 | |
| 0.63 | 1.80 | 0.32 | 0.92 | 9.16 | 180.52 | -9.70 | 39.80 | 0.2612 | -944.4 | -785.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 10.34 | 180.14 | -10.08 | 38.07 | 0.2805 | -583.0 | -550.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.18 | 179.99 | -10.23 | 38.83 | 0.2801 | -725.0 | -643.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 10.44 | 179.82 | -10.40 | 38.71 | 0.2851 | -438.0 | -420.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.85 | 179.81 | -10.41 | 40.10 | 0.2776 | -891.0 | -667.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 10.84 | 179.75 | -10.47 | 38.02 | 0.2912 | -884.0 | -716.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.42 | 178.48 | -11.74 | 44.54 | 0.2875 | 860.0 | 649.8 | |
| 0.63 | 15.73 | 0.33 | 8.17 | 10.11 | 178.14 | -12.08 | 43.70 | 0.2996 | -479.3 | 370.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 17.96 | 177.59 | -12.63 | 30.95 | 0.4063 | 649.0 | 505.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.93 | 177.64 | -12.58 | 45.27 | 0.3033 | 904.0 | 728.2 | |
| 0.00 | 3.77 | 0.00 | 1.97 | 10.55 | 177.33 | -12.89 | 44.51 | 0.3142 | 866.0 | 808.4 | |
| 1.71 | 28.22 | 0.89 | 14.78 | 11.09 | 177.06 | -13.17 | 43.92 | 0.3237 | 1096.1 | 647.3 | |
| 0.00 | 3.95 | 0.00 | 2.06 | 10.03 | 177.07 | -13.15 | 46.30 | 0.3113 | 984.0 | 796.2 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 12.37 | 176.93 | -13.29 | 41.50 | 0.3404 | 910.0 | 743.8 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 10.37 | 176.99 | -13.23 | 45.67 | 0.3161 | 852.0 | 798.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.87 | 176.81 | -13.41 | 40.77 | 0.3478 | 739.0 | 658.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.87 | 176.89 | -13.34 | 47.06 | 0.3118 | 763.0 | 600.4 | |
| 2.97 | -27.00 | 1.56 | -27.00 | 11.34 | 176.79 | -13.43 | 43.94 | 0.3297 | 995.5 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 11.59 | 176.59 | -13.64 | 43.83 | 0.3349 | 711.0 | 643.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.37 | 176.42 | -13.80 | 42.55 | 0.3461 | 784.0 | 695.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 10.78 | 176.37 | -13.85 | 46.03 | 0.3282 | 766.0 | 687.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.78 | 176.27 | -13.95 | 42.05 | 0.3526 | 796.0 | 578.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 10.63 | 176.19 | -14.04 | 46.75 | 0.3287 | 967.0 | 780.3 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 13.13 | 175.90 | -14.33 | 42.11 | 0.3609 | 754.0 | 550.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.24 | 175.87 | -14.36 | 50.69 | 0.3177 | 853.0 | 684.4 | |
| 9.62 | 27.14 | 5.05 | 14.25 | 10.32 | 175.69 | -14.53 | 48.43 | 0.3314 | 1065.6 | 756.4 | |
| 3.42 | -41.00 | 1.80 | -41.00 | 10.54 | 175.52 | -14.70 | 48.25 | 0.3358 | 870.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
