SDO HMI 2014-05-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.32 | 50.24 | 21.19 | 52.11 | -9.01 | 251.65 | 61.43 | 261.04 | 0.8798 | -17.1 | 81.6 | |
|
previous
or next observation for the same group /

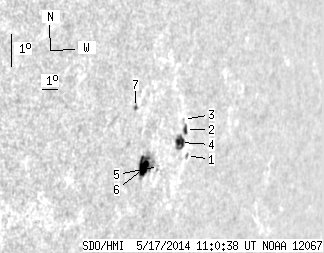

back to the solar disc SDO HMI 2014-05-17 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.78 | -8.94 | 253.55 | 63.32 | 261.20 | 0.8951 | 58.0 | 96.0 | |
| 2.07 | 4.31 | 2.25 | 4.70 | -8.15 | 253.24 | 63.02 | 262.07 | 0.8925 | 321.2 | 147.8 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -7.86 | 253.03 | 62.80 | 262.40 | 0.8908 | 337.0 | 346.7 | |
| 7.37 | 11.14 | 7.97 | 12.04 | -8.56 | 253.02 | 62.80 | 261.60 | 0.8909 | 624.2 | 454.5 | |
| 0.00 | 0.81 | 0.00 | 0.84 | -9.34 | 251.79 | 61.57 | 260.67 | 0.8813 | -75.0 | 23.9 | |
| 10.25 | 29.57 | 10.35 | 29.99 | -9.44 | 250.86 | 60.64 | 260.52 | 0.8736 | -587.1 | 42.8 | |
| 0.63 | 2.52 | 0.62 | 2.47 | -7.60 | 249.88 | 59.66 | 262.59 | 0.8647 | -574.6 | -445.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
