SDO HMI 2014-05-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.18 | 37.12 | 8.71 | 39.41 | 15.78 | 249.37 | 60.25 | 289.24 | 0.8867 | -537.2 | -289.7 | |
|
previous
or next observation for the same group /

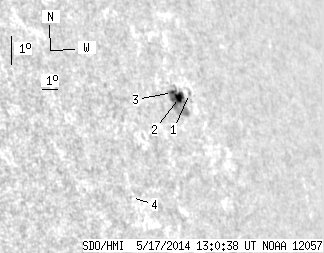

back to the solar disc SDO HMI 2014-05-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 2.07 | 15.95 | 250.22 | 61.10 | 289.25 | 0.8935 | -199.0 | -111.3 | |
| 6.20 | 34.51 | 6.62 | 36.67 | 15.79 | 249.49 | 60.37 | 289.23 | 0.8877 | -673.0 | -318.4 | |
| 1.98 | -2.00 | 2.09 | -2.00 | 15.94 | 249.12 | 59.99 | 289.47 | 0.8851 | -726.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.67 | 12.48 | 245.25 | 56.13 | 286.41 | 0.8471 | 420.0 | 361.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
