SDO HMI 2014-05-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.52 | 198.05 | 41.76 | 101.35 | -15.98 | 194.25 | 5.12 | 199.83 | 0.2517 | 100.1 | 149.3 | |
|
previous
or next observation for the same group /

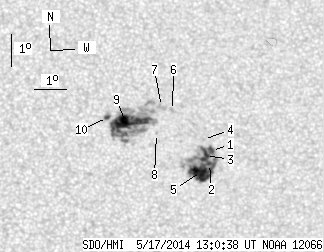

back to the solar disc SDO HMI 2014-05-17 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 77.37 | 1.62 | 39.81 | -16.31 | 195.94 | 6.82 | 205.33 | 0.2675 | 1143.9 | 655.1 | |
| 2.70 | -1.00 | 1.39 | -1.00 | -16.71 | 195.89 | 6.77 | 204.51 | 0.2733 | 1169.8 | 999999 | |
| 7.46 | -1.00 | 3.83 | -1.00 | -16.46 | 195.75 | 6.63 | 204.47 | 0.2685 | 1231.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.96 | 195.67 | 6.55 | 205.04 | 0.2604 | 786.0 | 609.1 | |
| 27.95 | -1.00 | 14.40 | -1.00 | -16.96 | 195.64 | 6.52 | 203.33 | 0.2754 | 1096.6 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -15.06 | 194.67 | 5.55 | 203.03 | 0.2396 | 746.0 | 624.8 | |
| 0.00 | 5.12 | 0.00 | 2.61 | -14.94 | 194.32 | 5.20 | 201.93 | 0.2354 | 681.0 | 705.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -15.78 | 194.18 | 5.06 | 200.11 | 0.2478 | 697.0 | 536.9 | |
| 38.64 | 107.47 | 19.70 | 54.80 | -15.47 | 193.23 | 4.10 | 196.95 | 0.2377 | -1096.1 | -165.2 | |
| 1.62 | 4.04 | 0.82 | 2.06 | -15.28 | 192.63 | 3.50 | 194.79 | 0.2318 | -882.7 | -456.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
