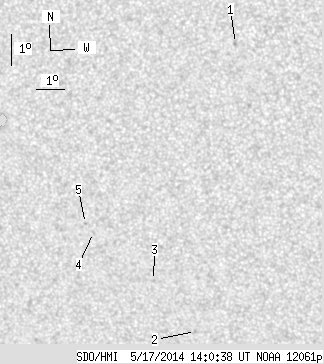

SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.12 | 0.00 | 3.52 | -19.57 | 163.11 | -25.46 | 126.16 | 0.5055 | -697.4 | -572.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.08 | -14.74 | 166.38 | -22.20 | 120.70 | 0.4266 | -658.0 | -554.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -23.85 | 163.55 | -25.02 | 133.68 | 0.5369 | -648.0 | -599.8 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -22.17 | 162.36 | -26.21 | 129.93 | 0.5354 | -689.0 | -556.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -20.59 | 160.49 | -28.09 | 125.72 | 0.5449 | -789.0 | -613.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.30 | 160.25 | -28.32 | 125.05 | 0.5456 | -703.0 | -552.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
