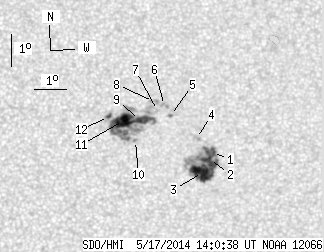

SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.91 | 187.15 | 35.91 | 95.91 | -15.99 | 194.33 | 5.76 | 202.04 | 0.2559 | 308.6 | -60.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 77.72 | 2.13 | 40.05 | -16.40 | 195.94 | 7.36 | 206.90 | 0.2729 | 1144.0 | 637.7 | |
| 14.65 | -1.00 | 7.54 | -1.00 | -16.61 | 195.85 | 7.28 | 206.26 | 0.2755 | 1164.2 | 999999 | |
| 26.87 | -1.00 | 13.86 | -1.00 | -17.02 | 195.64 | 7.07 | 204.95 | 0.2801 | 1101.2 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.80 | -15.96 | 195.41 | 6.84 | 205.99 | 0.2625 | 618.0 | 570.2 | |
| 0.36 | 1.89 | 0.18 | 0.96 | -15.25 | 194.57 | 5.99 | 204.34 | 0.2455 | -698.0 | -471.4 | |
| 0.00 | 3.50 | 0.00 | 1.79 | -14.94 | 194.37 | 5.80 | 204.17 | 0.2394 | 672.0 | 772.5 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -15.09 | 194.15 | 5.58 | 203.10 | 0.2403 | 763.0 | 544.0 | |
| 0.00 | 3.95 | 0.00 | 2.01 | -14.81 | 194.02 | 5.45 | 203.09 | 0.2351 | 796.0 | 733.8 | |
| 4.13 | 94.07 | 2.11 | 48.01 | -15.41 | 193.59 | 5.02 | 200.52 | 0.2417 | -1060.9 | -482.3 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -16.03 | 193.48 | 4.91 | 199.22 | 0.2509 | -875.0 | -584.0 | |
| 18.42 | -9.00 | 9.40 | -9.00 | -15.41 | 193.09 | 4.51 | 198.61 | 0.2388 | -1254.3 | 999999 | |
| 1.35 | -9.00 | 0.69 | -9.00 | -15.28 | 192.61 | 4.04 | 196.93 | 0.2343 | -968.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
