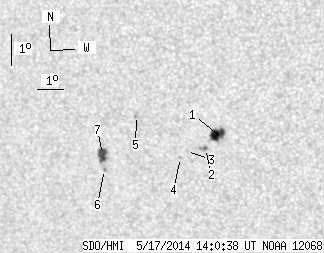

SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.31 | 37.38 | 12.35 | 22.76 | -17.26 | 155.75 | -32.82 | 116.99 | 0.5825 | 192.5 | 52.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.04 | 16.17 | 7.17 | 9.63 | -17.01 | 157.68 | -30.89 | 117.73 | 0.5568 | 976.5 | 554.3 | |
| 0.45 | 3.77 | 0.27 | 2.26 | -17.44 | 157.15 | -31.42 | 118.10 | 0.5659 | 826.4 | 635.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.52 | 156.43 | -32.15 | 117.76 | 0.5756 | 637.0 | 407.4 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -17.70 | 156.16 | -32.41 | 117.89 | 0.5799 | 458.0 | 418.9 | |
| 0.00 | 2.25 | 0.00 | 1.38 | -16.35 | 154.77 | -33.81 | 114.92 | 0.5909 | -738.0 | -559.6 | |
| 0.00 | 1.62 | 0.00 | 1.02 | -18.01 | 153.17 | -35.40 | 116.66 | 0.6187 | -685.0 | -538.8 | |
| 7.82 | 11.50 | 4.91 | 7.22 | -17.54 | 153.20 | -35.37 | 115.95 | 0.6161 | -892.6 | -555.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
