SDO HMI 2014-05-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.51 | 190.63 | 34.60 | 99.24 | -16.35 | 194.72 | 11.13 | 217.20 | 0.3065 | 178.6 | 114.3 | |
|
previous
or next observation for the same group /

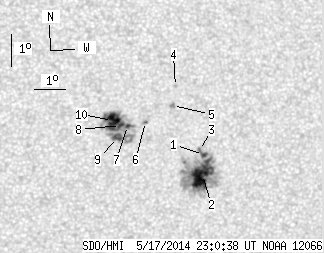

back to the solar disc SDO HMI 2014-05-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 111.80 | 1.13 | 58.57 | -16.43 | 195.85 | 12.26 | 219.87 | 0.3192 | 1079.3 | 476.1 | |
| 34.33 | -1.00 | 17.99 | -1.00 | -17.05 | 195.86 | 12.27 | 218.60 | 0.3270 | 1126.6 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | -16.30 | 195.71 | 12.12 | 219.82 | 0.3162 | 950.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -14.32 | 194.83 | 11.24 | 222.26 | 0.2821 | 875.0 | 632.6 | |
| 0.00 | 2.70 | 0.00 | 1.39 | -14.91 | 194.76 | 11.18 | 220.68 | 0.2886 | 1020.0 | 788.8 | |
| 0.36 | 1.98 | 0.19 | 1.02 | -15.41 | 193.93 | 10.34 | 217.39 | 0.2862 | -595.2 | -426.8 | |
| 1.44 | 72.53 | 0.74 | 37.42 | -15.54 | 193.36 | 9.77 | 215.58 | 0.2822 | -895.1 | -565.9 | |
| 3.60 | -7.00 | 1.85 | -7.00 | -15.54 | 193.13 | 9.55 | 214.96 | 0.2801 | -1161.9 | 999999 | |
| 4.85 | -7.00 | 2.51 | -7.00 | -15.92 | 193.05 | 9.47 | 213.96 | 0.2844 | -891.7 | 999999 | |
| 19.50 | -7.00 | 10.05 | -7.00 | -15.39 | 192.87 | 9.28 | 214.56 | 0.2754 | -1175.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
