SDO HMI 2014-05-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.16 | 32.28 | 10.52 | 18.66 | -17.26 | 155.96 | -27.63 | 120.67 | 0.5160 | 151.0 | 185.7 | |
|
previous
or next observation for the same group /

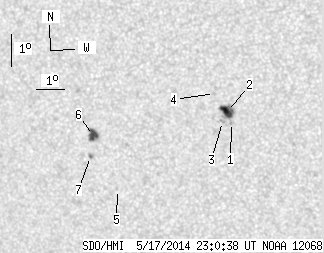

back to the solar disc SDO HMI 2014-05-17 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.82 | -17.25 | 158.12 | -25.47 | 122.41 | 0.4884 | 711.0 | 631.0 | |
| 10.07 | 14.56 | 5.70 | 8.25 | -16.90 | 158.03 | -25.56 | 121.69 | 0.4871 | 1095.7 | 712.1 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -17.21 | 157.80 | -25.78 | 122.05 | 0.4922 | 612.0 | 464.4 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -16.33 | 157.65 | -25.93 | 120.31 | 0.4881 | 761.0 | 661.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -19.28 | 153.64 | -29.94 | 122.15 | 0.5586 | -631.0 | -478.3 | |
| 7.46 | 10.61 | 4.44 | 6.31 | -17.56 | 153.09 | -30.50 | 118.94 | 0.5550 | -957.8 | -642.8 | |
| 0.63 | 1.71 | 0.38 | 1.02 | -18.22 | 152.85 | -30.73 | 119.86 | 0.5619 | -798.6 | -701.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
