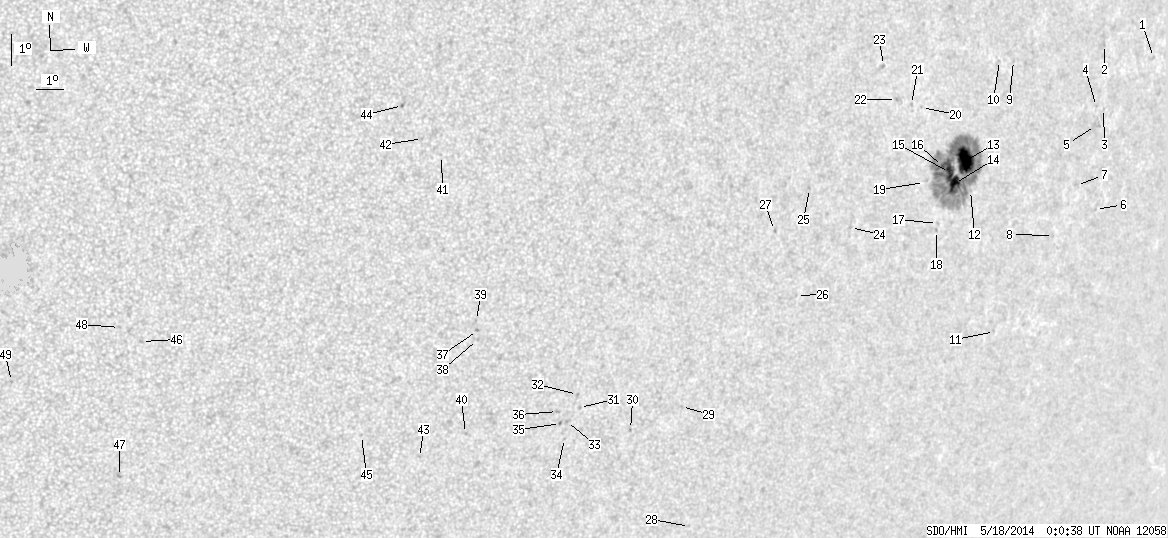

SDO HMI 2014-05-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.77 | 302.96 | 38.96 | 220.51 | -13.67 | 229.07 | 46.04 | 252.94 | 0.7320 | 255.9 | 268.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.19 | -9.63 | 238.93 | 55.90 | 259.97 | 0.8312 | 462.0 | 433.1 | |
| 0.00 | 1.44 | 0.00 | 1.19 | -9.31 | 236.24 | 53.21 | 260.14 | 0.8043 | 527.0 | 452.8 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -11.27 | 236.67 | 53.63 | 257.76 | 0.8103 | 296.0 | 295.7 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -11.22 | 236.29 | 53.26 | 257.78 | 0.8064 | 366.0 | 362.0 | |
| 0.00 | 4.31 | 0.00 | 3.61 | -11.80 | 236.40 | 53.36 | 257.07 | 0.8081 | 467.0 | 355.3 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -14.38 | 237.21 | 54.18 | 254.03 | 0.8192 | 371.0 | 295.8 | |
| 0.00 | 1.89 | 0.00 | 1.57 | -13.67 | 235.97 | 52.94 | 254.70 | 0.8060 | 615.0 | 454.8 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -15.25 | 235.31 | 52.28 | 252.64 | 0.8017 | 504.0 | 463.5 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -9.94 | 231.90 | 48.86 | 258.88 | 0.7583 | -350.0 | -347.4 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -9.96 | 231.25 | 48.21 | 258.78 | 0.7510 | -498.0 | -433.0 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -18.33 | 233.46 | 50.43 | 248.42 | 0.7891 | 419.0 | 372.0 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -13.98 | 230.84 | 47.81 | 253.38 | 0.7526 | -246.0 | -241.2 | |
| 32.99 | 250.59 | 24.42 | 184.67 | -13.06 | 230.37 | 47.33 | 254.50 | 0.7456 | 836.1 | 369.3 | |
| 10.16 | -13.00 | 7.49 | -13.00 | -13.79 | 230.05 | 47.01 | 253.47 | 0.7434 | 750.5 | 999999 | |
| 9.35 | -13.00 | 6.85 | -13.00 | -13.45 | 229.73 | 46.70 | 253.85 | 0.7392 | 945.1 | 999999 | |
| 0.27 | -13.00 | 0.20 | -13.00 | -13.28 | 229.37 | 46.34 | 254.00 | 0.7347 | 1007.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.06 | -15.04 | 229.61 | 46.58 | 251.69 | 0.7411 | 567.0 | 472.4 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -15.26 | 229.63 | 46.59 | 251.41 | 0.7418 | 555.0 | 463.2 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -13.79 | 228.69 | 45.65 | 253.15 | 0.7279 | 241.0 | 259.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -11.49 | 228.03 | 45.00 | 256.17 | 0.7159 | -478.0 | -422.2 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -11.41 | 227.58 | 44.55 | 256.19 | 0.7104 | -611.0 | -541.8 | |
| 0.00 | 1.44 | 0.00 | 1.00 | -11.28 | 226.90 | 43.87 | 256.25 | 0.7020 | -689.0 | -605.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -10.25 | 226.16 | 43.13 | 257.57 | 0.6912 | -579.0 | -451.4 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -15.27 | 225.81 | 42.78 | 250.34 | 0.6980 | -480.0 | -372.5 | |
| 0.00 | 1.44 | 0.00 | 0.96 | -14.11 | 223.81 | 40.78 | 251.39 | 0.6707 | -566.0 | -425.0 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -17.45 | 224.08 | 41.05 | 246.68 | 0.6845 | -556.0 | -467.6 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -15.45 | 222.67 | 39.63 | 249.04 | 0.6607 | -419.0 | -449.6 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -24.94 | 221.96 | 38.92 | 235.45 | 0.6940 | 489.0 | 389.6 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -21.07 | 220.33 | 37.30 | 239.83 | 0.6563 | -566.0 | -463.1 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -21.85 | 218.49 | 35.46 | 237.67 | 0.6395 | -625.0 | -531.1 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -21.19 | 216.29 | 33.26 | 237.24 | 0.6103 | -730.0 | -578.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -20.78 | 216.11 | 33.08 | 237.73 | 0.6057 | -640.0 | -513.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -21.65 | 215.90 | 32.87 | 236.29 | 0.6086 | -713.0 | -583.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -22.20 | 215.97 | 32.94 | 235.54 | 0.6128 | -522.0 | -407.0 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -21.72 | 215.69 | 32.65 | 236.04 | 0.6066 | -799.0 | -645.8 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -21.34 | 215.48 | 32.44 | 236.46 | 0.6017 | -848.0 | -683.3 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -18.82 | 211.92 | 28.89 | 237.78 | 0.5426 | -770.0 | -679.3 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -19.10 | 211.98 | 28.94 | 237.35 | 0.5452 | -659.0 | -425.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -18.50 | 211.83 | 28.79 | 238.23 | 0.5394 | -662.0 | -546.8 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -22.11 | 212.16 | 29.12 | 232.76 | 0.5685 | -521.0 | -566.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -13.38 | 209.81 | 26.78 | 245.96 | 0.4819 | -615.0 | -520.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -12.87 | 209.09 | 26.06 | 246.47 | 0.4690 | -749.0 | -623.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -22.91 | 210.62 | 27.59 | 230.20 | 0.5573 | -592.0 | -576.8 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -11.86 | 208.30 | 25.26 | 247.97 | 0.4524 | 873.0 | 681.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.24 | 208.35 | 25.32 | 229.03 | 0.5263 | -523.0 | -362.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -19.33 | 200.25 | 17.22 | 223.56 | 0.4070 | -723.0 | -617.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -23.67 | 200.03 | 16.99 | 216.24 | 0.4546 | -761.0 | -625.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -18.90 | 199.47 | 16.44 | 223.08 | 0.3936 | -658.0 | -488.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -20.65 | 196.03 | 13.00 | 213.77 | 0.3803 | -581.0 | -450.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
