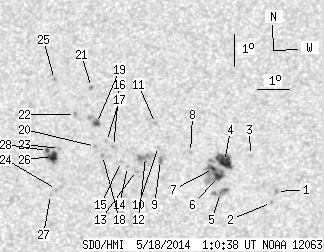

SDO HMI 2014-05-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.95 | 116.72 | 14.21 | 59.31 | 10.03 | 179.47 | -3.01 | 12.98 | 0.2240 | -47.0 | -200.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.04 | 9.04 | 182.78 | 0.30 | 358.48 | 0.1984 | -1096.0 | -746.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.70 | 182.63 | 0.15 | 359.23 | 0.1925 | -949.0 | -798.6 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 10.15 | 181.99 | -0.49 | 2.25 | 0.2176 | -700.0 | -551.2 | |
| 12.67 | 49.62 | 6.43 | 25.15 | 9.97 | 181.19 | -1.29 | 5.95 | 0.2155 | -1097.9 | -704.4 | |
| 0.00 | 9.17 | 0.00 | 4.63 | 9.01 | 181.07 | -1.41 | 7.06 | 0.1993 | -1016.0 | -870.3 | |
| 4.58 | -4.00 | 2.32 | -4.00 | 9.50 | 181.00 | -1.48 | 7.06 | 0.2079 | -1187.7 | 999999 | |
| 1.35 | -4.00 | 0.68 | -4.00 | 9.75 | 180.85 | -1.63 | 7.63 | 0.2125 | -1131.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.25 | 180.14 | -2.34 | 10.45 | 0.2228 | -830.0 | -604.9 | |
| 0.00 | 2.70 | 0.00 | 1.37 | 10.01 | 179.21 | -3.27 | 14.70 | 0.2222 | -1070.0 | -798.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.44 | 179.15 | -3.33 | 14.48 | 0.2296 | -723.0 | -445.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.16 | 179.05 | -3.43 | 14.12 | 0.2419 | -718.0 | -559.5 | |
| 0.00 | 9.44 | 0.00 | 4.80 | 10.13 | 178.75 | -3.73 | 16.51 | 0.2264 | -282.0 | -179.8 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 9.70 | 178.48 | -4.00 | 18.25 | 0.2207 | 799.0 | 684.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.82 | 178.20 | -4.28 | 19.24 | 0.2242 | 801.0 | 601.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.98 | 178.01 | -4.47 | 19.78 | 0.2278 | 750.0 | 542.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.45 | 177.76 | -4.72 | 20.09 | 0.2368 | 801.0 | 631.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 10.60 | 177.54 | -4.94 | 20.70 | 0.2405 | 829.0 | 730.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.17 | 177.42 | -5.06 | 21.83 | 0.2344 | 1071.0 | 934.4 | |
| 1.89 | 8.90 | 0.97 | 4.56 | 11.17 | 177.22 | -5.26 | 21.06 | 0.2514 | 1053.5 | 778.9 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.45 | 177.20 | -5.28 | 22.23 | 0.2402 | 902.0 | 737.7 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 12.29 | 177.04 | -5.44 | 20.13 | 0.2702 | 866.0 | 714.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 11.45 | 176.56 | -5.92 | 22.98 | 0.2600 | 970.0 | 789.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.39 | 176.09 | -6.39 | 26.43 | 0.2472 | 862.0 | 727.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 9.12 | 176.02 | -6.46 | 29.23 | 0.2286 | 789.0 | 726.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.55 | 175.88 | -6.60 | 23.59 | 0.2815 | 830.0 | 625.5 | |
| 6.38 | 12.14 | 3.26 | 6.20 | 10.15 | 175.87 | -6.61 | 27.65 | 0.2451 | 1146.4 | 751.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 8.97 | 175.83 | -6.65 | 30.25 | 0.2279 | 790.0 | 683.6 | |
| 1.08 | -26.00 | 0.55 | -26.00 | 10.33 | 175.72 | -6.76 | 27.85 | 0.2491 | 811.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
