SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.93 | 300.22 | 42.13 | 222.44 | -13.73 | 228.94 | 47.01 | 253.13 | 0.7431 | 343.3 | 257.6 | |
|
previous
or next observation for the same group /

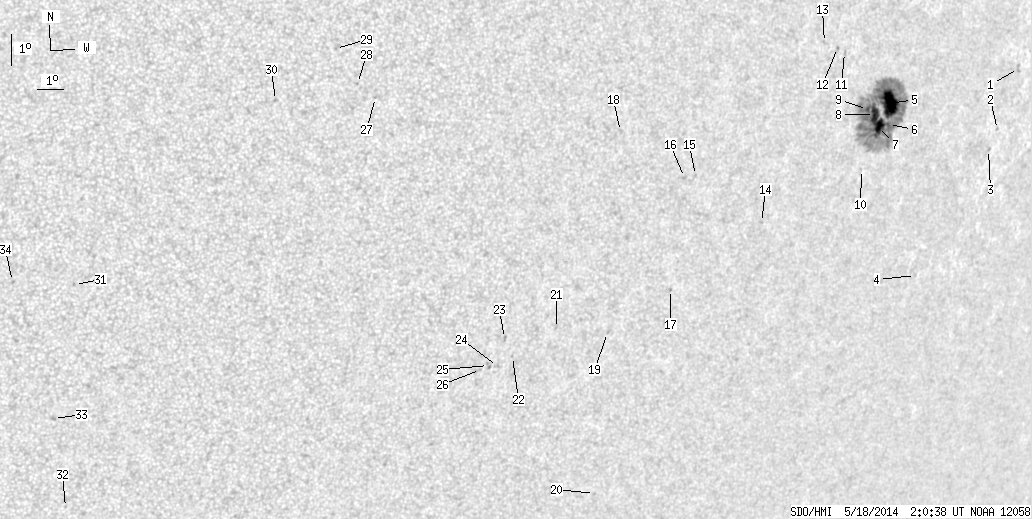

back to the solar disc SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.33 | 0.00 | 2.86 | -11.77 | 236.44 | 54.51 | 257.24 | 0.8195 | 543.0 | 466.6 | |
| 0.00 | 0.99 | 0.00 | 0.84 | -13.67 | 235.91 | 53.99 | 254.85 | 0.8164 | 613.0 | 486.0 | |
| 0.00 | 1.89 | 0.00 | 1.61 | -14.30 | 235.65 | 53.72 | 254.04 | 0.8147 | 502.0 | 464.7 | |
| 0.00 | 1.35 | 0.00 | 1.11 | -18.33 | 233.37 | 51.44 | 248.65 | 0.7992 | 265.0 | 200.2 | |
| 29.04 | 258.73 | 21.95 | 194.61 | -13.03 | 230.32 | 48.39 | 254.73 | 0.7574 | 851.7 | 345.6 | |
| 2.34 | -5.00 | 1.77 | -5.00 | -13.68 | 230.45 | 48.52 | 253.91 | 0.7599 | -46.1 | 999999 | |
| 12.77 | -5.00 | 9.61 | -5.00 | -13.76 | 230.00 | 48.07 | 253.72 | 0.7551 | 722.2 | 999999 | |
| 9.62 | -5.00 | 7.20 | -5.00 | -13.39 | 229.71 | 47.79 | 254.14 | 0.7513 | 939.1 | 999999 | |
| 2.16 | -5.00 | 1.60 | -5.00 | -13.25 | 229.35 | 47.42 | 254.26 | 0.7470 | 964.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -15.11 | 229.59 | 47.66 | 251.85 | 0.7532 | 608.0 | 474.4 | |
| 0.00 | 1.80 | 0.00 | 1.29 | -11.53 | 227.91 | 45.98 | 256.29 | 0.7275 | -346.0 | -389.9 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -11.38 | 227.56 | 45.63 | 256.43 | 0.7233 | -566.0 | -537.1 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -11.25 | 226.96 | 45.03 | 256.51 | 0.7159 | -702.0 | -613.0 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -16.88 | 225.57 | 43.64 | 248.37 | 0.7127 | -579.0 | -418.8 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -15.49 | 222.39 | 40.46 | 249.26 | 0.6710 | -586.0 | -469.8 | |
| 0.00 | 1.98 | 0.00 | 1.31 | -15.56 | 221.95 | 40.02 | 249.00 | 0.6659 | -534.0 | -405.8 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -19.08 | 222.30 | 40.37 | 244.10 | 0.6827 | -469.0 | -434.1 | |
| 0.00 | 2.34 | 0.00 | 1.48 | -14.20 | 219.09 | 37.16 | 249.97 | 0.6255 | -593.0 | -519.8 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -20.51 | 220.09 | 38.16 | 241.06 | 0.6635 | -529.0 | -502.0 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -25.73 | 221.32 | 39.40 | 234.67 | 0.7031 | 398.0 | 375.9 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -20.43 | 217.99 | 36.06 | 240.06 | 0.6388 | -476.0 | -423.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -21.36 | 216.48 | 34.56 | 237.81 | 0.6264 | -548.0 | -422.2 | |
| 0.00 | 2.16 | 0.00 | 1.36 | -20.79 | 216.02 | 34.09 | 238.35 | 0.6178 | -603.0 | -462.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -21.69 | 215.98 | 34.05 | 237.01 | 0.6226 | -591.0 | -600.9 | |
| 0.00 | 2.70 | 0.00 | 1.70 | -21.66 | 215.62 | 33.69 | 236.81 | 0.6183 | -723.0 | -667.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -21.80 | 215.34 | 33.41 | 236.43 | 0.6159 | -634.0 | -535.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -13.33 | 209.85 | 27.92 | 246.81 | 0.4977 | -576.0 | -445.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -12.91 | 209.17 | 27.24 | 247.18 | 0.4860 | -703.0 | -613.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.84 | 208.29 | 26.36 | 248.72 | 0.4682 | 693.0 | 575.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -13.48 | 206.39 | 24.46 | 243.97 | 0.4500 | -751.0 | -552.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -19.32 | 200.22 | 18.29 | 225.22 | 0.4190 | -796.0 | -647.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -26.55 | 200.94 | 19.01 | 215.26 | 0.5066 | -580.0 | -418.6 | |
| 0.00 | 2.52 | 0.00 | 1.41 | -23.63 | 200.05 | 18.13 | 217.99 | 0.4649 | -692.0 | -584.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -19.25 | 198.13 | 16.20 | 222.02 | 0.3951 | -485.0 | -489.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
