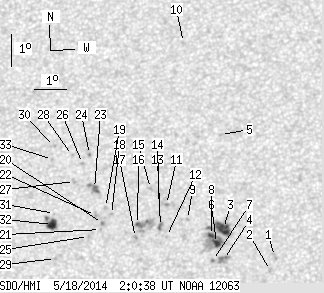

SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.01 | 124.73 | 12.18 | 63.41 | 10.22 | 179.35 | -2.58 | 11.02 | 0.2252 | -44.5 | -118.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.06 | 0.00 | 1.55 | 9.11 | 182.75 | 0.82 | 355.91 | 0.1999 | -597.0 | -612.3 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 8.68 | 182.63 | 0.70 | 356.39 | 0.1924 | -803.0 | -616.0 | |
| 10.97 | 44.77 | 5.56 | 22.69 | 9.98 | 181.19 | -0.74 | 3.43 | 0.2147 | -1131.1 | -693.2 | |
| 0.00 | 7.91 | 0.00 | 4.00 | 9.02 | 181.19 | -0.74 | 3.72 | 0.1983 | -965.0 | -848.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.91 | 181.09 | -0.84 | 3.11 | 0.2647 | -736.0 | -603.8 | |
| 3.87 | -3.00 | 1.96 | -3.00 | 9.51 | 180.97 | -0.96 | 4.59 | 0.2070 | -1225.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.99 | 180.85 | -1.08 | 5.41 | 0.1982 | -964.0 | -832.3 | |
| 2.34 | -3.00 | 1.18 | -3.00 | 9.76 | 180.82 | -1.11 | 5.21 | 0.2115 | -1086.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.26 | 180.08 | -1.85 | 8.30 | 0.2215 | -779.0 | -570.3 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 15.83 | 179.91 | -2.01 | 6.19 | 0.3150 | 755.0 | 554.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 10.73 | 179.43 | -2.50 | 10.75 | 0.2312 | -882.0 | -739.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 9.73 | 179.43 | -2.50 | 11.60 | 0.2145 | -747.0 | -594.3 | |
| 0.00 | 3.78 | 0.00 | 1.92 | 10.04 | 179.25 | -2.68 | 12.13 | 0.2204 | -925.0 | -795.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 10.35 | 179.21 | -2.72 | 11.98 | 0.2257 | -832.0 | -674.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 11.23 | 178.93 | -3.00 | 12.35 | 0.2412 | -775.0 | -581.7 | |
| 0.81 | 14.38 | 0.41 | 7.31 | 10.11 | 178.54 | -3.39 | 15.13 | 0.2243 | -608.7 | -20.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 9.71 | 178.48 | -3.45 | 15.88 | 0.2179 | 849.0 | 683.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 10.42 | 177.73 | -4.20 | 18.06 | 0.2333 | 697.0 | 673.3 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 10.64 | 177.54 | -4.39 | 18.51 | 0.2379 | 913.0 | 671.7 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.14 | 177.46 | -4.47 | 19.56 | 0.2304 | 1075.0 | 954.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 9.96 | 177.40 | -4.53 | 20.08 | 0.2277 | 878.0 | 677.3 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 10.39 | 177.24 | -4.69 | 20.07 | 0.2356 | 951.0 | 742.8 | |
| 0.00 | 7.82 | 0.00 | 4.00 | 11.23 | 177.19 | -4.74 | 19.05 | 0.2493 | 1148.0 | 864.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.30 | 177.02 | -4.91 | 18.32 | 0.2673 | 870.0 | 748.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 9.74 | 177.03 | -4.90 | 21.92 | 0.2265 | 906.0 | 719.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.02 | 176.81 | -5.12 | 19.41 | 0.2640 | 857.0 | 681.6 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 11.46 | 176.57 | -5.36 | 21.02 | 0.2565 | 925.0 | 743.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.27 | 176.49 | -5.44 | 20.17 | 0.2698 | 636.0 | 534.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.07 | 176.02 | -5.91 | 27.23 | 0.2232 | 847.0 | 719.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.56 | 175.92 | -6.01 | 21.68 | 0.2777 | 751.0 | 553.6 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 10.46 | 175.97 | -5.96 | 24.77 | 0.2450 | 595.0 | 442.4 | |
| 6.02 | 11.42 | 3.07 | 5.83 | 10.12 | 175.91 | -6.02 | 25.59 | 0.2401 | 1159.5 | 779.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.15 | 175.87 | -6.06 | 22.43 | 0.2717 | 792.0 | 618.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
