SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.75 | 43.73 | 4.36 | 28.70 | -17.74 | 143.36 | -38.57 | 114.93 | 0.6549 | 380.7 | 270.2 | |
|
previous
or next observation for the same group /

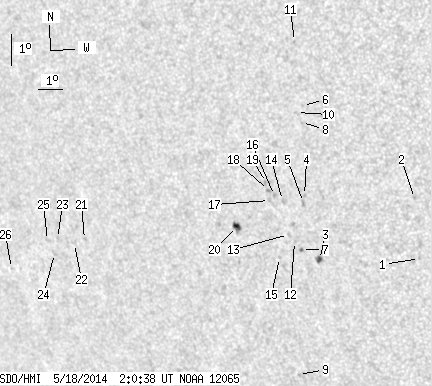

back to the solar disc SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.14 | 150.28 | -31.65 | 120.73 | 0.5789 | 581.0 | 486.5 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -17.24 | 150.48 | -31.45 | 117.81 | 0.5656 | 733.0 | 602.4 | |
| 2.16 | 4.14 | 1.37 | 2.62 | -19.08 | 146.43 | -35.50 | 118.28 | 0.6254 | 728.8 | 507.7 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -17.06 | 146.32 | -35.61 | 115.14 | 0.6172 | 713.0 | 629.1 | |
| 0.00 | 2.88 | 0.00 | 1.81 | -17.27 | 146.23 | -35.70 | 115.43 | 0.6192 | 699.0 | 597.6 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -14.25 | 146.81 | -35.12 | 110.96 | 0.5993 | 641.0 | 512.0 | |
| 0.54 | 1.53 | 0.34 | 0.97 | -18.75 | 145.80 | -36.13 | 117.44 | 0.6313 | 679.3 | 585.2 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -14.78 | 146.67 | -35.26 | 111.74 | 0.6031 | 586.0 | 476.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -22.73 | 144.54 | -37.39 | 122.45 | 0.6660 | 512.0 | 367.7 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -14.47 | 146.54 | -35.39 | 111.18 | 0.6037 | 462.0 | 471.2 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -12.27 | 146.83 | -35.10 | 107.74 | 0.5920 | 502.0 | 364.6 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -18.49 | 145.59 | -36.34 | 116.94 | 0.6327 | 410.0 | 358.4 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -18.26 | 145.40 | -36.52 | 116.51 | 0.6339 | 678.0 | 597.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -17.19 | 145.42 | -36.51 | 114.91 | 0.6289 | 606.0 | 558.7 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -18.98 | 144.86 | -37.07 | 117.29 | 0.6437 | 550.0 | 390.7 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -17.03 | 145.14 | -36.78 | 114.53 | 0.6316 | 785.0 | 669.2 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -17.18 | 144.91 | -37.02 | 114.65 | 0.6351 | 481.0 | 408.4 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -16.86 | 144.94 | -36.99 | 114.19 | 0.6334 | 604.0 | 488.0 | |
| 0.00 | 3.15 | 0.00 | 2.01 | -16.61 | 144.92 | -37.01 | 113.80 | 0.6327 | 412.0 | 494.4 | |
| 4.05 | 6.20 | 2.65 | 4.06 | -17.96 | 143.38 | -38.55 | 115.10 | 0.6569 | 754.4 | 504.2 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -18.19 | 136.78 | -45.15 | 112.91 | 0.7335 | -729.0 | -666.5 | |
| 0.00 | 1.62 | 0.00 | 1.19 | -18.31 | 136.29 | -45.64 | 112.90 | 0.7392 | -653.0 | -542.2 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -18.13 | 135.56 | -46.37 | 112.44 | 0.7465 | -485.0 | -342.5 | |
| 0.00 | 1.53 | 0.00 | 1.14 | -18.59 | 135.26 | -46.67 | 112.95 | 0.7510 | -501.0 | -505.8 | |
| 0.00 | 2.25 | 0.00 | 1.68 | -18.18 | 135.08 | -46.85 | 112.36 | 0.7518 | -229.0 | -221.1 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -19.00 | 133.04 | -48.89 | 112.84 | 0.7752 | -469.0 | -394.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
