SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.15 | 201.65 | 27.29 | 105.71 | -16.50 | 194.81 | 12.88 | 220.90 | 0.3270 | 146.9 | 133.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

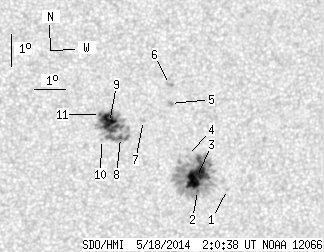

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.38 | -17.52 | 196.91 | 14.98 | 223.12 | 0.3621 | 771.0 | 587.0 | |
| 1.17 | 123.25 | 0.62 | 65.03 | -17.56 | 195.92 | 14.00 | 221.17 | 0.3518 | 797.4 | 466.2 | |
| 27.78 | -2.00 | 14.66 | -2.00 | -17.15 | 195.86 | 13.93 | 221.86 | 0.3462 | 1169.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -16.47 | 195.52 | 13.59 | 222.59 | 0.3344 | 762.0 | 638.8 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -14.85 | 194.86 | 12.93 | 224.83 | 0.3082 | 971.0 | 767.5 | |
| 0.00 | 2.43 | 0.00 | 1.26 | -14.26 | 194.80 | 12.87 | 226.12 | 0.3007 | 757.0 | 699.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -15.39 | 194.02 | 12.10 | 221.72 | 0.3049 | -467.0 | -402.5 | |
| 1.08 | 69.67 | 0.56 | 36.13 | -15.92 | 193.32 | 11.39 | 218.87 | 0.3039 | -884.8 | -594.2 | |
| 21.22 | -8.00 | 10.99 | -8.00 | -15.46 | 192.94 | 11.01 | 218.96 | 0.2940 | -1167.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -15.99 | 192.71 | 10.78 | 217.23 | 0.2985 | -625.0 | -498.1 | |
| 0.90 | -8.00 | 0.46 | -8.00 | -15.21 | 192.64 | 10.71 | 218.75 | 0.2877 | -987.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
