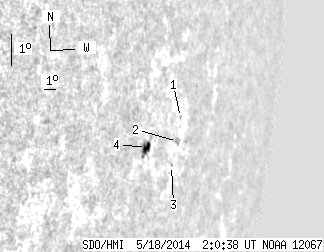

SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.75 | 16.46 | 7.88 | 23.53 | -9.01 | 251.80 | 69.87 | 261.26 | 0.9395 | -217.4 | -0.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.96 | -8.12 | 253.52 | 71.59 | 262.22 | 0.9494 | 227.0 | 196.4 | |
| 0.00 | 3.60 | 0.00 | 5.61 | -8.86 | 253.55 | 71.63 | 261.44 | 0.9496 | 453.0 | 305.4 | |
| 0.00 | 0.63 | 0.00 | 0.97 | -9.60 | 253.33 | 71.40 | 260.65 | 0.9485 | 252.0 | 205.6 | |
| 5.75 | 10.97 | 7.88 | 14.99 | -9.14 | 250.82 | 68.89 | 261.10 | 0.9338 | -418.4 | -324.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
