SDO HMI 2014-05-18 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.03 | 45.44 | 3.85 | 29.24 | -17.70 | 144.14 | -37.23 | 115.42 | 0.6394 | 392.4 | 320.0 | |
|
previous
or next observation for the same group /

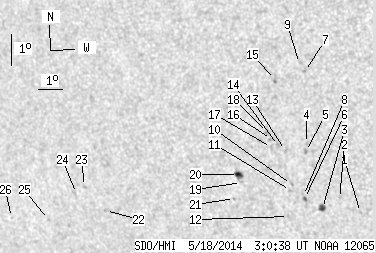

back to the solar disc SDO HMI 2014-05-18 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.61 | -19.25 | 147.90 | -33.47 | 119.72 | 0.6018 | 636.0 | 475.9 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -18.79 | 147.20 | -34.18 | 118.59 | 0.6079 | 676.0 | 573.8 | |
| 2.52 | 4.32 | 1.58 | 2.71 | -19.09 | 146.46 | -34.91 | 118.62 | 0.6184 | 736.3 | 489.5 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -17.03 | 146.32 | -35.06 | 115.39 | 0.6103 | 767.0 | 663.3 | |
| 0.00 | 1.89 | 0.00 | 1.18 | -17.28 | 146.22 | -35.16 | 115.73 | 0.6126 | 800.0 | 712.2 | |
| 0.45 | 1.44 | 0.28 | 0.91 | -18.75 | 145.84 | -35.54 | 117.77 | 0.6243 | 696.2 | 568.7 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -14.78 | 146.69 | -34.69 | 112.02 | 0.5958 | 736.0 | 534.6 | |
| 0.00 | 1.89 | 0.00 | 1.19 | -18.66 | 145.82 | -35.56 | 117.62 | 0.6240 | 465.0 | 440.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -14.53 | 146.54 | -34.83 | 111.55 | 0.5967 | 530.0 | 497.9 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -18.30 | 145.44 | -35.94 | 116.88 | 0.6270 | 758.0 | 583.1 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -18.49 | 145.35 | -36.03 | 117.11 | 0.6290 | 499.0 | 444.8 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -19.31 | 145.06 | -36.32 | 118.18 | 0.6363 | 468.0 | 446.1 | |
| 0.00 | 2.07 | 0.00 | 1.31 | -17.23 | 145.45 | -35.93 | 115.26 | 0.6219 | 700.0 | 573.9 | |
| 0.00 | 2.34 | 0.00 | 1.48 | -17.06 | 145.21 | -36.17 | 114.89 | 0.6242 | 791.0 | 606.5 | |
| 0.00 | 2.25 | 0.00 | 1.40 | -15.01 | 145.53 | -35.85 | 111.85 | 0.6117 | -746.0 | -624.2 | |
| 0.00 | 2.16 | 0.00 | 1.37 | -16.87 | 144.98 | -36.40 | 114.48 | 0.6262 | 574.0 | 499.1 | |
| 0.00 | 1.98 | 0.00 | 1.26 | -17.12 | 144.92 | -36.46 | 114.84 | 0.6280 | 440.0 | 370.5 | |
| 0.00 | 3.24 | 0.00 | 2.05 | -16.65 | 144.87 | -36.51 | 114.09 | 0.6266 | 481.0 | 427.2 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -18.19 | 143.46 | -37.92 | 115.73 | 0.6504 | 630.0 | 458.4 | |
| 3.06 | 5.84 | 1.99 | 3.80 | -17.93 | 143.40 | -37.97 | 115.33 | 0.6500 | 799.2 | 582.7 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -18.69 | 143.04 | -38.34 | 116.26 | 0.6574 | 279.0 | 357.4 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -18.92 | 137.47 | -43.91 | 114.30 | 0.7221 | -356.0 | -377.0 | |
| 0.00 | 1.53 | 0.00 | 1.10 | -18.14 | 136.78 | -44.60 | 113.02 | 0.7272 | -690.0 | -622.8 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -18.35 | 136.35 | -45.03 | 113.16 | 0.7326 | -286.0 | -346.1 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -19.13 | 134.79 | -46.59 | 113.68 | 0.7518 | -371.0 | -348.2 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -19.01 | 133.06 | -48.31 | 113.02 | 0.7694 | -498.0 | -422.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
