SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.30 | 276.07 | 48.78 | 209.81 | -13.59 | 229.31 | 48.48 | 253.70 | 0.7589 | 337.7 | 269.2 | |
|
previous
or next observation for the same group /

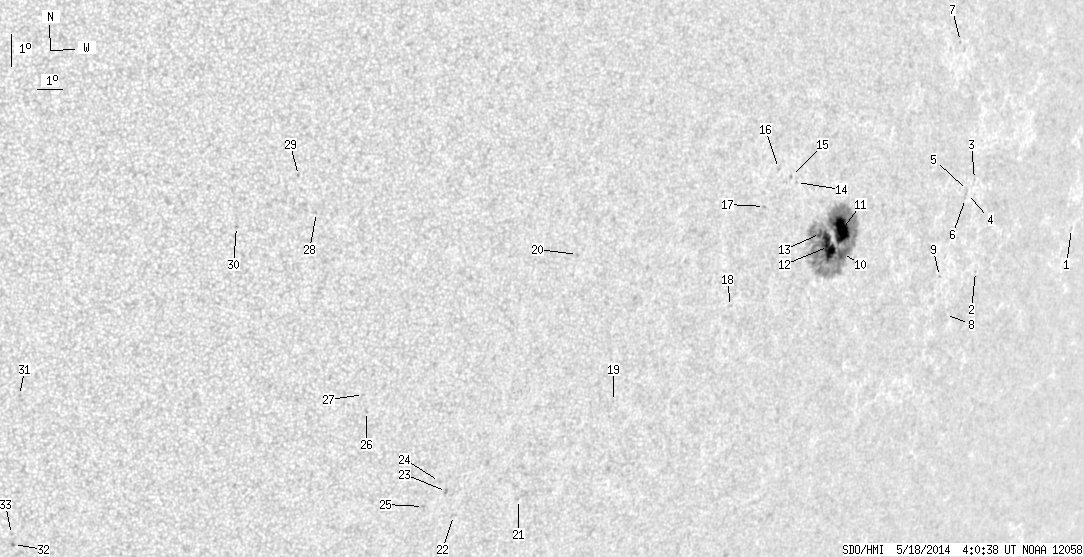

back to the solar disc SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 1.06 | -12.55 | 243.08 | 62.25 | 257.04 | 0.8883 | 311.0 | 280.6 | |
| 0.00 | 0.81 | 0.00 | 0.74 | -14.07 | 237.73 | 56.90 | 254.76 | 0.8443 | 308.0 | 228.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -11.25 | 236.72 | 55.89 | 258.00 | 0.8323 | 402.0 | 376.3 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -11.69 | 236.46 | 55.63 | 257.44 | 0.8303 | 554.0 | 524.3 | |
| 0.00 | 0.45 | 0.00 | 0.40 | -11.60 | 236.44 | 55.61 | 257.55 | 0.8299 | 402.0 | 380.2 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -11.85 | 236.40 | 55.57 | 257.25 | 0.8298 | 442.0 | 440.2 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -7.07 | 235.00 | 54.17 | 262.95 | 0.8129 | 487.0 | 414.7 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -15.45 | 236.57 | 55.74 | 252.96 | 0.8353 | 247.0 | 245.0 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -14.29 | 235.79 | 54.96 | 254.23 | 0.8266 | 571.0 | 537.8 | |
| 9.80 | 245.65 | 7.63 | 188.87 | -13.73 | 230.61 | 49.78 | 254.07 | 0.7736 | -207.4 | 346.5 | |
| 26.88 | -10.00 | 20.77 | -10.00 | -13.02 | 230.36 | 49.53 | 254.94 | 0.7699 | 870.4 | 999999 | |
| 23.92 | -10.00 | 18.33 | -10.00 | -13.53 | 229.88 | 49.05 | 254.19 | 0.7655 | 851.5 | 999999 | |
| 2.70 | -10.00 | 2.05 | -10.00 | -13.14 | 229.39 | 48.56 | 254.60 | 0.7595 | 931.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -11.61 | 227.91 | 47.08 | 256.37 | 0.7404 | -452.0 | -375.9 | |
| 0.00 | 1.44 | 0.00 | 1.05 | -11.43 | 227.64 | 46.81 | 256.56 | 0.7371 | -657.0 | -539.2 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -11.20 | 227.01 | 46.18 | 256.76 | 0.7294 | -546.0 | -510.1 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -12.39 | 226.63 | 45.80 | 255.07 | 0.7270 | -568.0 | -477.5 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -15.51 | 225.90 | 45.07 | 250.65 | 0.7254 | -397.0 | -297.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -18.61 | 221.69 | 40.86 | 244.95 | 0.6867 | -570.0 | -471.7 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -14.06 | 219.11 | 38.28 | 250.58 | 0.6395 | -722.0 | -534.0 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -21.82 | 218.68 | 37.85 | 239.04 | 0.6665 | -562.0 | -454.2 | |
| 0.00 | 2.61 | 0.00 | 1.68 | -22.39 | 216.19 | 35.36 | 236.81 | 0.6417 | -612.0 | -383.3 | |
| 0.00 | 2.07 | 0.00 | 1.32 | -21.63 | 215.69 | 34.87 | 237.59 | 0.6317 | -908.0 | -716.2 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -21.31 | 215.33 | 34.50 | 237.82 | 0.6257 | -734.0 | -602.2 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -22.13 | 214.92 | 34.09 | 236.38 | 0.6258 | -732.0 | -561.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -19.14 | 212.00 | 31.17 | 238.91 | 0.5732 | -690.0 | -455.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.61 | 211.78 | 30.95 | 239.61 | 0.5672 | -708.0 | -523.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -12.97 | 209.17 | 28.34 | 247.73 | 0.5018 | -650.0 | -445.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -11.84 | 208.40 | 27.57 | 249.45 | 0.4858 | 743.0 | 548.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -13.45 | 206.42 | 25.59 | 244.91 | 0.4658 | -660.0 | -517.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.82 | 199.64 | 18.81 | 226.85 | 0.4200 | -771.0 | -612.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -23.60 | 200.07 | 19.24 | 219.60 | 0.4756 | -716.0 | -636.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -23.28 | 199.95 | 19.12 | 219.91 | 0.4708 | -558.0 | -505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
