SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.47 | 117.38 | 11.92 | 59.62 | 10.19 | 179.30 | -1.52 | 6.38 | 0.2216 | -100.0 | -143.6 | |
|
previous
or next observation for the same group /

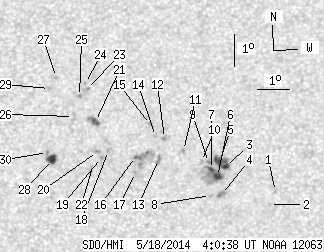

back to the solar disc SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.91 | 9.06 | 182.81 | 1.99 | 350.17 | 0.2013 | -897.0 | -662.8 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.66 | 182.63 | 1.80 | 350.75 | 0.1940 | -767.0 | -573.7 | |
| 2.70 | 41.99 | 1.37 | 21.27 | 9.84 | 181.28 | 0.45 | 357.89 | 0.2118 | -1190.7 | -659.2 | |
| 0.00 | 4.77 | 0.00 | 2.41 | 8.97 | 181.16 | 0.33 | 358.35 | 0.1969 | -908.0 | -853.5 | |
| 6.20 | -3.00 | 3.15 | -3.00 | 9.99 | 181.10 | 0.27 | 358.76 | 0.2144 | -1126.9 | 999999 | |
| 4.68 | -3.00 | 2.37 | -3.00 | 9.53 | 181.03 | 0.21 | 359.01 | 0.2064 | -1263.1 | 999999 | |
| 1.62 | -3.00 | 0.82 | -3.00 | 9.75 | 180.85 | 0.02 | 359.90 | 0.2101 | -1184.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.94 | 180.82 | -0.01 | 0.05 | 0.1963 | -700.0 | -579.1 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 9.96 | 180.76 | -0.07 | 0.33 | 0.2138 | -822.0 | -717.9 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 9.99 | 180.54 | -0.29 | 1.32 | 0.2144 | -630.0 | -511.2 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.34 | 179.99 | -0.84 | 3.77 | 0.2207 | -658.0 | -484.4 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 10.71 | 179.40 | -1.43 | 6.19 | 0.2279 | -999.0 | -780.0 | |
| 0.00 | 3.96 | 0.00 | 2.01 | 10.06 | 179.22 | -1.61 | 7.35 | 0.2172 | -895.0 | -743.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 10.77 | 179.12 | -1.71 | 7.35 | 0.2295 | -790.0 | -625.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 11.15 | 178.97 | -1.86 | 7.79 | 0.2362 | -712.0 | -673.5 | |
| 0.36 | 15.56 | 0.18 | 7.90 | 10.15 | 178.51 | -2.32 | 10.45 | 0.2207 | -684.2 | 19.2 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.66 | 178.51 | -2.32 | 10.86 | 0.2123 | 905.0 | 719.9 | |
| 0.00 | 2.79 | 0.00 | 1.42 | 10.34 | 177.68 | -3.15 | 13.86 | 0.2268 | 869.0 | 681.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.13 | 177.46 | -3.37 | 15.02 | 0.2242 | 1186.0 | 969.2 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 10.31 | 177.34 | -3.49 | 15.32 | 0.2278 | 993.0 | 799.8 | |
| 2.61 | 7.28 | 1.33 | 3.72 | 11.25 | 177.26 | -3.56 | 14.57 | 0.2435 | 1051.4 | 753.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.85 | 177.19 | -3.64 | 16.54 | 0.2209 | 701.0 | 628.3 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 12.25 | 176.97 | -3.86 | 14.64 | 0.2612 | 724.0 | 759.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.44 | 176.94 | -3.89 | 14.58 | 0.2644 | 806.0 | 669.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 12.03 | 176.76 | -4.07 | 15.65 | 0.2585 | 952.0 | 829.1 | |
| 0.00 | 2.88 | 0.00 | 1.47 | 11.41 | 176.58 | -4.25 | 17.02 | 0.2492 | 725.0 | 647.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.63 | 176.03 | -4.80 | 17.55 | 0.2717 | 956.0 | 774.9 | |
| 5.30 | 7.64 | 2.70 | 3.89 | 10.07 | 175.95 | -4.88 | 21.33 | 0.2313 | 1168.9 | 822.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 12.28 | 175.82 | -5.01 | 18.69 | 0.2673 | 934.0 | 712.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.29 | 175.79 | -5.04 | 21.60 | 0.2358 | 834.0 | 683.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
