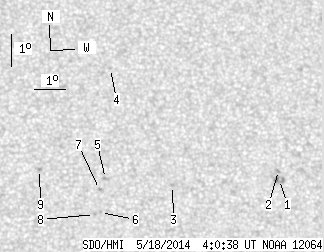

SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.55 | 0.00 | 8.69 | 9.20 | 196.00 | 15.17 | 308.07 | 0.3286 | 327.1 | -37.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.30 | 0.00 | 2.83 | 9.07 | 199.22 | 18.39 | 302.12 | 0.3694 | -543.0 | -738.4 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 9.35 | 199.20 | 18.37 | 302.79 | 0.3715 | -718.0 | -618.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.85 | 195.78 | 14.95 | 307.05 | 0.3208 | -720.0 | -558.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 12.47 | 193.98 | 13.15 | 318.87 | 0.3392 | 689.0 | 416.9 | |
| 0.00 | 2.25 | 0.00 | 1.17 | 9.05 | 193.67 | 12.84 | 311.80 | 0.2956 | 893.0 | 620.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 7.99 | 193.47 | 12.64 | 309.42 | 0.2818 | 641.0 | 553.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.70 | 193.47 | 12.64 | 311.36 | 0.2894 | 966.0 | 800.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 7.93 | 193.28 | 12.45 | 309.67 | 0.2787 | 829.0 | 650.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 9.31 | 191.60 | 10.78 | 317.45 | 0.2740 | 907.0 | 741.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
