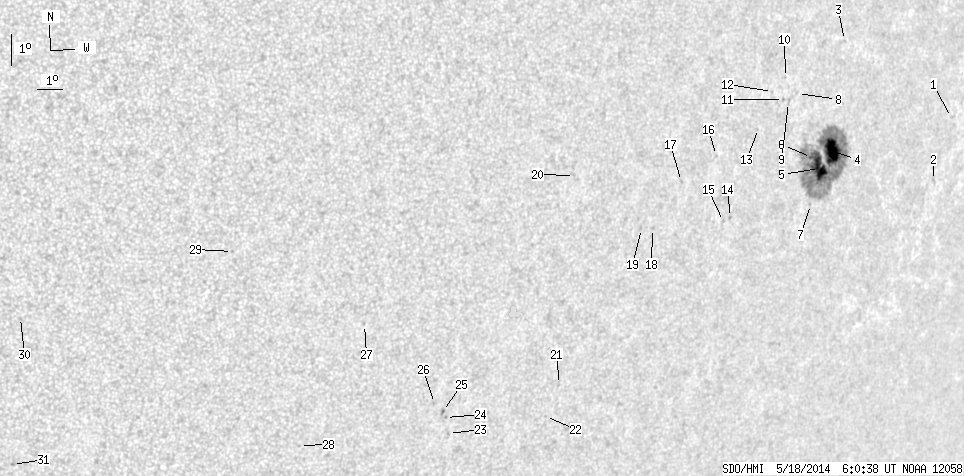

SDO HMI 2014-05-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.14 | 256.85 | 36.33 | 199.60 | -13.49 | 229.40 | 49.67 | 254.15 | 0.7721 | 300.5 | 254.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.14 | -11.75 | 236.28 | 56.54 | 257.46 | 0.8389 | 461.0 | 420.9 | |
| 0.00 | 2.34 | 0.00 | 2.11 | -13.71 | 235.93 | 56.19 | 255.08 | 0.8375 | 559.0 | 401.9 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -9.56 | 230.14 | 50.40 | 259.51 | 0.7750 | -488.0 | -468.2 | |
| 27.16 | 226.97 | 21.46 | 178.42 | -12.98 | 230.37 | 50.64 | 255.17 | 0.7817 | 886.3 | 338.3 | |
| 17.54 | -4.00 | 13.75 | -4.00 | -13.52 | 229.89 | 50.16 | 254.40 | 0.7774 | 856.6 | 999999 | |
| 1.44 | -4.00 | 1.12 | -4.00 | -13.19 | 229.41 | 49.68 | 254.73 | 0.7717 | 937.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -14.65 | 229.79 | 50.05 | 252.94 | 0.7781 | 509.0 | 398.6 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -11.25 | 228.26 | 48.52 | 257.07 | 0.7562 | -321.0 | -251.6 | |
| 0.00 | 1.89 | 0.00 | 1.42 | -11.54 | 227.90 | 48.17 | 256.63 | 0.7527 | -412.0 | -419.0 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -10.78 | 227.59 | 47.86 | 257.59 | 0.7482 | -580.0 | -526.9 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -11.45 | 227.65 | 47.92 | 256.70 | 0.7497 | -663.0 | -561.2 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -11.22 | 227.09 | 47.36 | 256.92 | 0.7430 | -599.0 | -556.8 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -12.37 | 226.71 | 46.98 | 255.31 | 0.7405 | -542.0 | -474.7 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -15.15 | 226.15 | 46.42 | 251.47 | 0.7397 | -457.0 | -379.9 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -15.29 | 225.87 | 46.13 | 251.22 | 0.7369 | -457.0 | -388.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -13.26 | 225.02 | 45.29 | 253.76 | 0.7228 | -213.0 | -220.3 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -14.10 | 223.68 | 43.95 | 252.27 | 0.7090 | -548.0 | -495.3 | |
| 0.00 | 1.62 | 0.00 | 1.12 | -15.59 | 222.80 | 43.07 | 249.95 | 0.7025 | -55.0 | -95.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -15.60 | 222.33 | 42.60 | 249.78 | 0.6970 | -667.0 | -589.1 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -14.02 | 219.17 | 39.44 | 251.02 | 0.6540 | -670.0 | -470.8 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -20.59 | 220.26 | 40.53 | 242.06 | 0.6909 | -640.0 | -470.5 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -21.62 | 220.00 | 40.27 | 240.53 | 0.6925 | -496.0 | -430.2 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -22.26 | 216.15 | 36.42 | 237.61 | 0.6529 | -573.0 | -468.9 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -21.75 | 215.88 | 36.14 | 238.17 | 0.6470 | -722.0 | -585.5 | |
| 0.00 | 2.16 | 0.00 | 1.39 | -21.56 | 215.70 | 35.97 | 238.34 | 0.6440 | -756.0 | -686.3 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -21.31 | 215.31 | 35.57 | 238.47 | 0.6382 | -769.0 | -597.0 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -18.86 | 211.97 | 32.24 | 240.07 | 0.5847 | -656.0 | -560.2 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -22.77 | 210.40 | 30.67 | 232.98 | 0.5913 | -619.0 | -533.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -16.65 | 206.73 | 27.00 | 239.93 | 0.5046 | -725.0 | -628.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -18.83 | 199.66 | 19.93 | 228.38 | 0.4333 | -674.0 | -503.4 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -23.54 | 200.05 | 20.32 | 221.13 | 0.4858 | -746.0 | -591.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
