SDO HMI 2014-05-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.94 | 42.12 | 3.72 | 26.72 | -18.17 | 143.87 | -35.86 | 116.91 | 0.6248 | 361.9 | 278.7 | |
|
previous
or next observation for the same group /

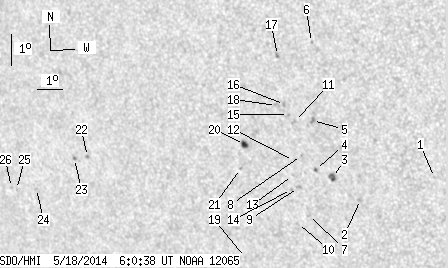

back to the solar disc SDO HMI 2014-05-18 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.37 | -19.13 | 150.42 | -29.31 | 122.46 | 0.5503 | 608.0 | 444.6 | |
| 0.00 | 2.34 | 0.00 | 1.43 | -19.77 | 147.51 | -32.22 | 121.36 | 0.5898 | 363.0 | 384.4 | |
| 2.43 | 4.50 | 1.50 | 2.77 | -19.05 | 146.60 | -33.13 | 119.66 | 0.5967 | 780.4 | 578.4 | |
| 0.36 | 1.44 | 0.22 | 0.89 | -18.78 | 146.01 | -33.72 | 118.88 | 0.6025 | 767.8 | 683.1 | |
| 0.00 | 2.43 | 0.00 | 1.49 | -17.24 | 146.23 | -33.50 | 116.60 | 0.5918 | 861.0 | 736.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -14.80 | 146.66 | -33.07 | 112.88 | 0.5748 | 612.0 | 472.9 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -20.23 | 145.39 | -34.35 | 120.70 | 0.6179 | 511.0 | 459.5 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -18.33 | 145.57 | -34.16 | 117.92 | 0.6055 | 877.0 | 678.4 | |
| 0.00 | 2.16 | 0.00 | 1.35 | -19.33 | 145.22 | -34.51 | 119.25 | 0.6150 | 696.0 | 582.8 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -20.48 | 144.89 | -34.84 | 120.76 | 0.6251 | 341.0 | 293.2 | |
| 0.00 | 2.25 | 0.00 | 1.39 | -17.25 | 145.54 | -34.19 | 116.23 | 0.6006 | 748.0 | 610.2 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -18.48 | 145.23 | -34.51 | 117.96 | 0.6105 | 433.0 | 446.8 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -18.95 | 145.08 | -34.66 | 118.59 | 0.6147 | 553.0 | 496.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.39 | 144.93 | -34.80 | 119.17 | 0.6188 | 465.0 | 395.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -17.03 | 145.36 | -34.38 | 115.78 | 0.6018 | 756.0 | 635.8 | |
| 0.00 | 1.80 | 0.00 | 1.11 | -16.71 | 145.27 | -34.46 | 115.24 | 0.6014 | 691.0 | 629.3 | |
| 0.00 | 1.98 | 0.00 | 1.22 | -15.18 | 145.30 | -34.43 | 112.81 | 0.5942 | -804.0 | -641.9 | |
| 0.00 | 3.15 | 0.00 | 1.95 | -16.74 | 144.95 | -34.78 | 115.11 | 0.6055 | 413.0 | 391.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.51 | 142.50 | -37.23 | 120.88 | 0.6581 | 512.0 | 543.0 | |
| 3.15 | 4.59 | 2.00 | 2.92 | -17.93 | 143.43 | -36.30 | 116.16 | 0.6298 | 842.0 | 603.9 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -18.68 | 143.09 | -36.64 | 117.10 | 0.6374 | 724.0 | 566.4 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -18.14 | 136.85 | -42.88 | 113.64 | 0.7082 | -774.0 | -703.3 | |
| 0.00 | 1.80 | 0.00 | 1.27 | -18.19 | 136.27 | -43.46 | 113.49 | 0.7149 | -764.0 | -678.0 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -19.08 | 134.26 | -45.48 | 114.00 | 0.7398 | -587.0 | -467.7 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -19.09 | 133.33 | -46.40 | 113.71 | 0.7498 | -538.0 | -464.0 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -19.02 | 133.12 | -46.61 | 113.55 | 0.7518 | -456.0 | -401.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
