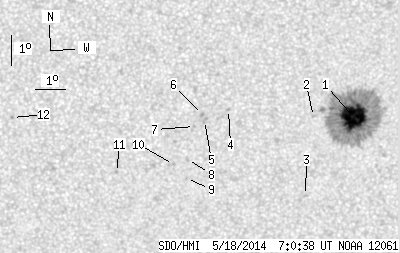

SDO HMI 2014-05-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.34 | 262.77 | 23.68 | 143.49 | -24.18 | 191.36 | 12.18 | 207.21 | 0.4224 | 694.3 | 358.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.34 | 247.47 | 23.68 | 135.21 | -24.13 | 191.65 | 12.47 | 207.86 | 0.4234 | 1281.9 | 417.3 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -24.14 | 190.30 | 11.11 | 205.26 | 0.4138 | 664.0 | 525.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -26.75 | 190.26 | 11.08 | 202.49 | 0.4505 | 579.0 | 553.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.93 | 187.42 | 8.23 | 199.53 | 0.3931 | -820.0 | -632.6 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -24.29 | 186.63 | 7.45 | 197.50 | 0.3946 | -773.0 | -751.9 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -24.10 | 186.56 | 7.37 | 197.49 | 0.3912 | -953.0 | -812.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -24.49 | 186.31 | 7.12 | 196.63 | 0.3961 | -795.0 | -591.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -25.58 | 186.13 | 6.95 | 195.43 | 0.4119 | -868.0 | -669.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -26.21 | 186.14 | 6.95 | 195.00 | 0.4215 | -692.0 | -582.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -25.74 | 185.67 | 6.48 | 194.34 | 0.4125 | -938.0 | -739.8 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -26.01 | 183.75 | 4.57 | 190.09 | 0.4102 | -794.0 | -610.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -24.20 | 180.22 | 1.04 | 182.54 | 0.3750 | -886.0 | -674.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
