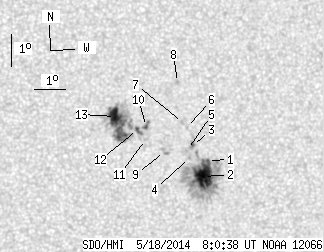

SDO HMI 2014-05-18 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.23 | 207.03 | 24.60 | 110.19 | -16.49 | 194.81 | 16.17 | 227.22 | 0.3650 | 348.2 | 41.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 113.40 | 0.48 | 60.89 | -16.77 | 196.06 | 17.42 | 228.73 | 0.3830 | 882.0 | 458.7 | |
| 27.07 | -1.00 | 14.53 | -1.00 | -17.27 | 195.97 | 17.33 | 227.57 | 0.3871 | 1197.5 | 999999 | |
| 0.63 | 3.24 | 0.34 | 1.73 | -16.30 | 195.52 | 16.88 | 228.84 | 0.3718 | 1134.1 | 953.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -16.68 | 195.45 | 16.81 | 227.95 | 0.3748 | 951.0 | 808.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -16.43 | 195.36 | 16.73 | 228.32 | 0.3712 | 596.0 | 575.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.74 | 195.27 | 16.64 | 229.65 | 0.3631 | 666.0 | 630.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -15.59 | 195.13 | 16.49 | 229.75 | 0.3598 | 343.0 | 322.0 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -14.35 | 194.87 | 16.23 | 232.17 | 0.3443 | 949.0 | 660.7 | |
| 0.00 | 3.51 | 0.00 | 1.86 | -16.50 | 194.61 | 15.97 | 226.92 | 0.3629 | 441.0 | 491.7 | |
| 0.90 | 4.23 | 0.47 | 2.23 | -15.72 | 193.96 | 15.32 | 227.44 | 0.3468 | -787.1 | -602.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -16.13 | 193.96 | 15.32 | 226.55 | 0.3511 | -292.0 | -147.5 | |
| 1.44 | 73.92 | 0.76 | 38.86 | -15.82 | 193.67 | 15.04 | 226.71 | 0.3444 | -895.0 | -692.4 | |
| 15.29 | -12.00 | 8.02 | -12.00 | -15.42 | 192.93 | 14.29 | 226.20 | 0.3311 | -1246.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
