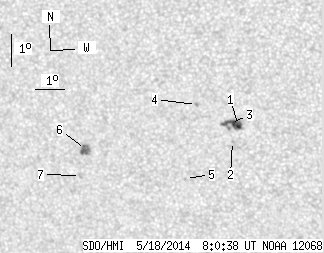

SDO HMI 2014-05-18 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.55 | 31.03 | 4.66 | 17.22 | -17.19 | 156.16 | -22.48 | 125.63 | 0.4502 | 581.7 | -58.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.42 | 16.37 | 1.86 | 8.93 | -16.87 | 158.43 | -20.20 | 127.55 | 0.4186 | 1204.9 | 745.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.37 | 158.17 | -20.47 | 128.19 | 0.4263 | 828.0 | 639.7 | |
| 5.13 | -1.00 | 2.80 | -1.00 | -16.81 | 158.17 | -20.47 | 127.08 | 0.4213 | 1039.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -16.20 | 157.09 | -21.55 | 124.55 | 0.4301 | 915.0 | 722.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.51 | 156.42 | -22.22 | 128.19 | 0.4581 | 576.0 | 532.8 | |
| 0.00 | 9.35 | 0.00 | 5.32 | -17.54 | 153.07 | -25.57 | 122.94 | 0.4924 | -1099.0 | -798.3 | |
| 0.00 | 2.25 | 0.00 | 1.29 | -18.36 | 152.76 | -25.88 | 124.10 | 0.5022 | -752.0 | -597.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
