SDO HMI 2014-05-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 35.28 | 1.88 | 22.26 | -18.74 | 143.02 | -35.07 | 118.34 | 0.6184 | 199.2 | 227.9 | |
|
previous
or next observation for the same group /

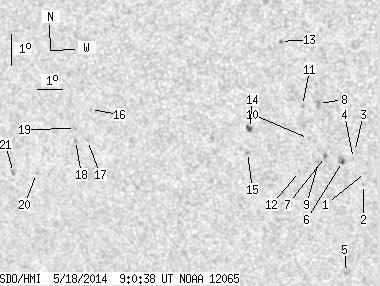

back to the solar disc SDO HMI 2014-05-18 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.59 | -19.40 | 147.54 | -30.55 | 121.99 | 0.5675 | 602.0 | 500.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.78 | 147.38 | -30.71 | 122.47 | 0.5718 | 705.0 | 564.1 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -18.73 | 147.27 | -30.83 | 120.71 | 0.5666 | 534.0 | 625.8 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -18.95 | 147.18 | -30.91 | 121.01 | 0.5690 | 380.0 | 464.3 | |
| 0.00 | 3.78 | 0.00 | 2.35 | -22.58 | 146.06 | -32.03 | 125.74 | 0.6055 | 648.0 | 528.1 | |
| 0.90 | 4.50 | 0.54 | 2.72 | -19.04 | 146.75 | -31.34 | 120.84 | 0.5748 | 821.0 | 642.1 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -18.87 | 146.15 | -31.94 | 120.16 | 0.5813 | 822.0 | 700.7 | |
| 0.00 | 2.88 | 0.00 | 1.73 | -17.19 | 146.23 | -31.86 | 117.53 | 0.5709 | 912.0 | 765.9 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -19.02 | 145.85 | -32.24 | 120.20 | 0.5858 | 537.0 | 420.1 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -18.28 | 145.63 | -32.46 | 118.91 | 0.5844 | 635.0 | 501.4 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -17.24 | 145.61 | -32.48 | 117.23 | 0.5789 | 697.0 | 617.4 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -19.32 | 145.05 | -33.04 | 120.16 | 0.5972 | 388.0 | 339.8 | |
| 0.36 | 1.44 | 0.22 | 0.87 | -15.23 | 145.17 | -32.92 | 113.68 | 0.5748 | -591.5 | -458.2 | |
| 1.80 | 3.15 | 1.12 | 1.96 | -17.92 | 143.44 | -34.65 | 117.04 | 0.6096 | 850.2 | 668.3 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -18.67 | 143.19 | -34.90 | 118.05 | 0.6164 | 653.0 | 562.1 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -17.17 | 137.21 | -40.88 | 113.05 | 0.6818 | -576.0 | -396.5 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -18.14 | 136.81 | -41.28 | 114.25 | 0.6899 | -843.0 | -739.7 | |
| 0.00 | 1.53 | 0.00 | 1.05 | -18.12 | 136.30 | -41.79 | 114.04 | 0.6957 | -766.0 | -658.5 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -17.75 | 136.41 | -41.68 | 113.55 | 0.6932 | -665.0 | -580.6 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -19.12 | 134.28 | -43.81 | 114.63 | 0.7219 | -582.0 | -474.8 | |
| 0.00 | 1.89 | 0.00 | 1.37 | -19.06 | 133.27 | -44.82 | 114.20 | 0.7328 | -596.0 | -487.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
