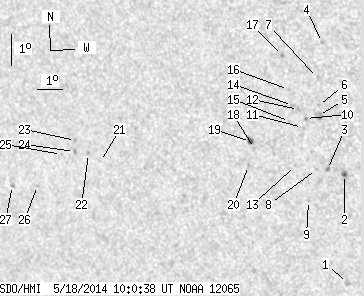

SDO HMI 2014-05-18 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.88 | 44.46 | 1.77 | 27.70 | -18.12 | 143.21 | -34.33 | 117.73 | 0.6060 | 273.3 | 272.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.33 | 0.00 | 2.05 | -22.50 | 146.08 | -31.46 | 126.04 | 0.5985 | 635.0 | 535.5 | |
| 0.63 | 2.52 | 0.38 | 1.51 | -19.04 | 146.77 | -30.78 | 121.26 | 0.5680 | 803.7 | 652.9 | |
| 0.00 | 2.25 | 0.00 | 1.36 | -18.87 | 146.16 | -31.38 | 120.56 | 0.5744 | 822.0 | 652.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -14.89 | 146.72 | -30.83 | 114.31 | 0.5455 | 614.0 | 510.5 | |
| 0.00 | 4.77 | 0.00 | 2.85 | -17.17 | 146.17 | -31.37 | 117.81 | 0.5645 | 595.0 | 726.9 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -16.85 | 146.23 | -31.31 | 117.33 | 0.5620 | 840.0 | 656.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -15.98 | 146.35 | -31.19 | 115.94 | 0.5558 | 631.0 | 517.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -18.86 | 145.75 | -31.79 | 120.27 | 0.5794 | 676.0 | 537.7 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -19.84 | 145.23 | -32.31 | 121.44 | 0.5915 | 470.0 | 408.5 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -17.25 | 145.67 | -31.87 | 117.63 | 0.5714 | 666.0 | 561.6 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -17.53 | 145.50 | -32.04 | 117.97 | 0.5750 | 371.0 | 309.9 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -16.96 | 145.46 | -32.08 | 117.03 | 0.5725 | 706.0 | 641.3 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -18.72 | 144.99 | -32.56 | 119.54 | 0.5880 | 537.0 | 414.0 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -16.83 | 145.26 | -32.28 | 116.70 | 0.5743 | 625.0 | 541.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.33 | 145.05 | -32.49 | 117.38 | 0.5796 | 451.0 | 384.2 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -16.33 | 145.21 | -32.33 | 115.84 | 0.5725 | 509.0 | 397.7 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -15.27 | 145.18 | -32.37 | 114.06 | 0.5677 | -705.0 | -503.1 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -18.15 | 143.54 | -34.00 | 117.77 | 0.6028 | 470.0 | 331.9 | |
| 2.25 | 4.50 | 1.39 | 2.79 | -17.93 | 143.44 | -34.11 | 117.36 | 0.6029 | 879.5 | 628.9 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -18.68 | 143.19 | -34.35 | 118.38 | 0.6098 | 760.0 | 525.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -18.41 | 137.29 | -40.26 | 115.06 | 0.6791 | -451.0 | -383.4 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -18.15 | 136.86 | -40.69 | 114.51 | 0.6831 | -818.0 | -673.6 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -17.73 | 136.43 | -41.12 | 113.75 | 0.6866 | -728.0 | -597.8 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -18.07 | 136.29 | -41.26 | 114.17 | 0.6895 | -761.0 | -634.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -18.15 | 135.71 | -41.84 | 114.06 | 0.6964 | -537.0 | -443.6 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -19.10 | 134.36 | -43.18 | 114.85 | 0.7149 | -547.0 | -458.6 | |
| 0.00 | 1.98 | 0.00 | 1.42 | -19.07 | 133.26 | -44.28 | 114.41 | 0.7269 | -573.0 | -448.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
