SDO HMI 2014-05-18 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.69 | 97.67 | 10.01 | 49.64 | 10.20 | 179.62 | 3.17 | 345.50 | 0.2265 | -394.6 | -189.7 | |
|
previous
or next observation for the same group /

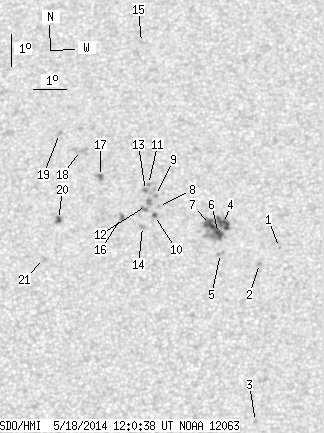

back to the solar disc SDO HMI 2014-05-18 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.12 | 182.93 | 6.48 | 330.55 | 0.2277 | -745.0 | -565.8 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 8.62 | 182.30 | 5.85 | 331.91 | 0.2151 | -995.0 | -835.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 3.77 | 182.12 | 5.67 | 316.89 | 0.1450 | -820.0 | -626.3 | |
| 6.38 | 46.57 | 3.25 | 23.66 | 9.85 | 181.21 | 4.76 | 338.72 | 0.2265 | -1118.1 | -709.4 | |
| 0.00 | 2.97 | 0.00 | 1.50 | 8.93 | 181.10 | 4.66 | 337.56 | 0.2111 | -796.0 | -732.3 | |
| 4.41 | -4.00 | 2.24 | -4.00 | 9.54 | 181.05 | 4.60 | 338.87 | 0.2206 | -1227.2 | 999999 | |
| 6.02 | -4.00 | 3.06 | -4.00 | 9.82 | 180.81 | 4.36 | 340.32 | 0.2236 | -1022.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.38 | 179.21 | 2.76 | 347.78 | 0.2252 | -958.0 | -723.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 10.72 | 179.12 | 2.68 | 348.48 | 0.2306 | -1026.0 | -853.9 | |
| 0.72 | 2.43 | 0.37 | 1.23 | 10.10 | 179.08 | 2.64 | 348.06 | 0.2201 | -1002.9 | -723.5 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 11.06 | 178.91 | 2.46 | 349.65 | 0.2357 | -886.0 | -692.8 | |
| 0.00 | 7.46 | 0.00 | 3.79 | 10.41 | 178.84 | 2.39 | 349.40 | 0.2245 | 154.0 | -138.0 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 10.88 | 178.81 | 2.37 | 349.89 | 0.2323 | -980.0 | -801.5 | |
| 0.00 | 2.61 | 0.00 | 1.32 | 9.76 | 178.71 | 2.27 | 349.42 | 0.2131 | 796.0 | 640.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 15.54 | 178.74 | 2.29 | 352.82 | 0.3097 | 767.0 | 529.0 | |
| 0.00 | 3.69 | 0.00 | 1.87 | 10.04 | 178.07 | 1.62 | 352.56 | 0.2161 | 981.0 | 755.5 | |
| 0.63 | 4.32 | 0.32 | 2.20 | 11.31 | 177.43 | 0.98 | 355.92 | 0.2367 | 1039.0 | 839.4 | |
| 0.00 | 7.82 | 0.00 | 4.00 | 12.13 | 176.81 | 0.36 | 358.57 | 0.2500 | 835.0 | 687.7 | |
| 0.00 | 2.70 | 0.00 | 1.38 | 12.66 | 176.16 | -0.29 | 1.09 | 0.2590 | 942.0 | 687.9 | |
| 1.53 | 2.79 | 0.77 | 1.41 | 9.98 | 176.13 | -0.32 | 1.48 | 0.2134 | 1147.1 | 926.3 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 8.77 | 175.67 | -0.78 | 4.01 | 0.1930 | 703.0 | 658.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
