SDO HMI 2014-05-18 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.05 | 251.91 | 41.49 | 135.59 | -16.56 | 194.75 | 18.31 | 230.40 | 0.3920 | 141.7 | 22.4 | |
|
previous
or next observation for the same group /

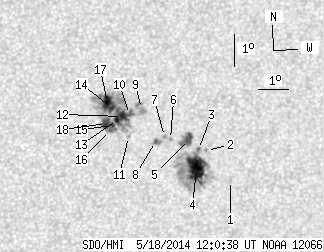

back to the solar disc SDO HMI 2014-05-18 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.81 | 197.34 | 20.89 | 231.49 | 0.4357 | 656.0 | 565.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -16.88 | 196.42 | 19.97 | 232.12 | 0.4158 | 759.0 | 649.0 | |
| 0.54 | 108.69 | 0.29 | 59.19 | -16.85 | 196.14 | 19.70 | 231.82 | 0.4121 | 910.3 | 376.5 | |
| 33.80 | -3.00 | 18.41 | -3.00 | -17.44 | 196.14 | 19.70 | 230.64 | 0.4176 | 1087.9 | 999999 | |
| 6.38 | 15.28 | 3.46 | 8.27 | -16.54 | 195.78 | 19.33 | 231.94 | 0.4047 | 1079.7 | 833.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -16.55 | 195.17 | 18.73 | 231.09 | 0.3972 | 1087.0 | 974.4 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -16.45 | 194.96 | 18.52 | 230.98 | 0.3937 | 1004.0 | 865.1 | |
| 1.17 | 4.14 | 0.63 | 2.23 | -16.61 | 194.68 | 18.23 | 230.24 | 0.3917 | 1023.2 | 852.1 | |
| 0.00 | 9.62 | 0.00 | 5.14 | -15.59 | 194.12 | 17.67 | 231.58 | 0.3749 | 67.0 | -103.1 | |
| 0.27 | 108.06 | 0.14 | 57.45 | -15.78 | 193.74 | 17.29 | 230.58 | 0.3719 | -772.0 | -509.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.47 | 193.77 | 17.32 | 229.17 | 0.3790 | -667.0 | -569.8 | |
| 6.47 | -10.00 | 3.45 | -10.00 | -15.84 | 193.52 | 17.07 | 230.09 | 0.3697 | -958.4 | 999999 | |
| 2.61 | -10.00 | 1.39 | -10.00 | -15.94 | 193.36 | 16.91 | 229.64 | 0.3687 | -1043.3 | 999999 | |
| 3.60 | -10.00 | 1.91 | -10.00 | -15.60 | 193.17 | 16.72 | 230.07 | 0.3629 | -1150.8 | 999999 | |
| 3.06 | -10.00 | 1.63 | -10.00 | -16.13 | 193.21 | 16.76 | 228.99 | 0.3688 | -931.7 | 999999 | |
| 1.35 | -10.00 | 0.72 | -10.00 | -16.29 | 193.16 | 16.71 | 228.57 | 0.3697 | -705.5 | 999999 | |
| 11.42 | -10.00 | 6.06 | -10.00 | -15.41 | 192.99 | 16.54 | 230.19 | 0.3588 | -1294.9 | 999999 | |
| 6.38 | -10.00 | 3.40 | -10.00 | -16.07 | 193.01 | 16.56 | 228.79 | 0.3657 | -1107.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
