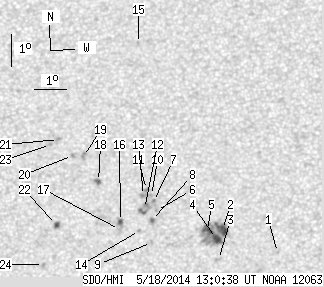

SDO HMI 2014-05-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.88 | 95.61 | 9.59 | 48.63 | 10.30 | 179.58 | 3.68 | 343.68 | 0.2299 | -255.7 | -263.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.12 | 182.93 | 7.04 | 328.49 | 0.2325 | -723.0 | -567.8 | |
| 5.93 | 45.22 | 3.02 | 22.99 | 9.83 | 181.25 | 5.35 | 336.32 | 0.2298 | -1128.1 | -724.6 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 8.90 | 181.11 | 5.21 | 335.14 | 0.2144 | -788.0 | -732.4 | |
| 4.94 | -2.00 | 2.51 | -2.00 | 9.55 | 181.06 | 5.16 | 336.58 | 0.2242 | -1245.8 | 999999 | |
| 4.14 | -2.00 | 2.10 | -2.00 | 9.79 | 180.78 | 4.89 | 338.12 | 0.2263 | -1037.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 10.41 | 179.22 | 3.32 | 345.46 | 0.2279 | -904.0 | -724.1 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 10.69 | 179.13 | 3.23 | 346.13 | 0.2322 | -1024.0 | -804.3 | |
| 0.54 | 2.52 | 0.27 | 1.28 | 10.10 | 179.06 | 3.16 | 345.78 | 0.2221 | -1077.3 | -718.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 9.42 | 179.05 | 3.16 | 345.00 | 0.2108 | -798.0 | -658.3 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.88 | 179.07 | 3.17 | 346.57 | 0.2350 | -778.0 | -656.1 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.07 | 178.92 | 3.02 | 347.37 | 0.2376 | -836.0 | -680.8 | |
| 0.00 | 9.80 | 0.00 | 4.98 | 10.47 | 178.85 | 2.95 | 347.08 | 0.2275 | 30.0 | -156.3 | |
| 0.00 | 3.87 | 0.00 | 1.97 | 10.88 | 178.82 | 2.92 | 347.58 | 0.2341 | -1008.0 | -673.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.79 | 178.69 | 2.79 | 347.08 | 0.2155 | 829.0 | 637.3 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 15.66 | 178.73 | 2.83 | 351.22 | 0.3131 | 779.0 | 613.7 | |
| 1.08 | 2.52 | 0.55 | 1.28 | 10.07 | 178.10 | 2.21 | 349.94 | 0.2182 | 935.5 | 747.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 9.82 | 178.07 | 2.17 | 349.89 | 0.2139 | 829.0 | 621.8 | |
| 0.81 | 3.42 | 0.41 | 1.74 | 11.31 | 177.43 | 1.54 | 353.61 | 0.2376 | 1006.7 | 813.3 | |
| 0.00 | 3.51 | 0.00 | 1.79 | 12.10 | 176.97 | 1.08 | 355.76 | 0.2501 | 848.0 | 717.9 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 12.13 | 176.63 | 0.74 | 357.11 | 0.2502 | 972.0 | 755.6 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 12.63 | 176.20 | 0.30 | 358.85 | 0.2585 | 854.0 | 702.9 | |
| 1.44 | 3.15 | 0.73 | 1.60 | 9.98 | 176.13 | 0.24 | 358.90 | 0.2133 | 1098.3 | 908.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.47 | 175.95 | 0.06 | 359.79 | 0.2558 | 838.0 | 691.0 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.74 | 175.73 | -0.16 | 0.85 | 0.1920 | 916.0 | 776.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
