SDO HMI 2014-05-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.22 | 239.58 | 31.49 | 206.03 | -13.31 | 229.64 | 54.30 | 255.18 | 0.8188 | 420.7 | 225.9 | |
|
previous
or next observation for the same group /

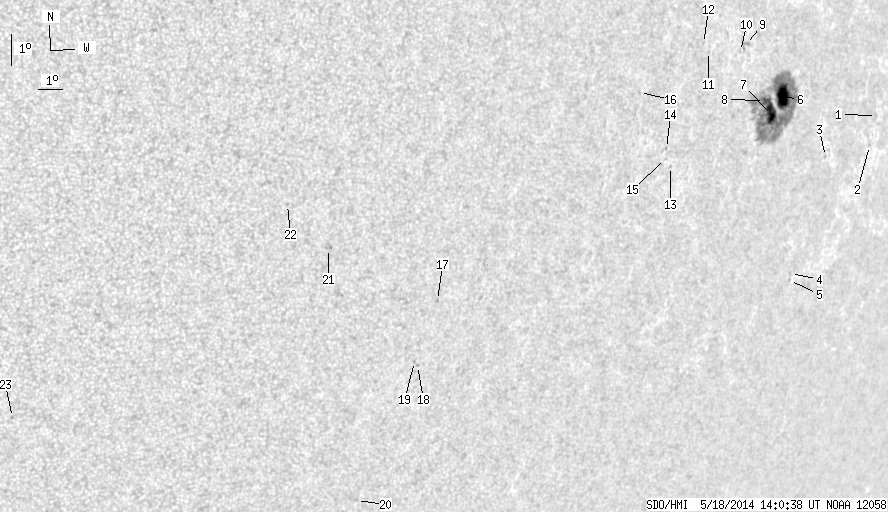

back to the solar disc SDO HMI 2014-05-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.56 | -13.26 | 236.04 | 60.69 | 256.09 | 0.8763 | 190.0 | 194.6 | |
| 0.00 | 1.35 | 0.00 | 1.38 | -14.20 | 235.99 | 60.65 | 255.02 | 0.8767 | 533.0 | 413.1 | |
| 0.00 | 1.08 | 0.00 | 1.03 | -14.62 | 233.45 | 58.11 | 254.23 | 0.8557 | 541.0 | 461.7 | |
| 0.00 | 1.35 | 0.00 | 1.29 | -18.32 | 233.10 | 57.76 | 249.89 | 0.8571 | 408.0 | 296.4 | |
| 0.00 | 1.26 | 0.00 | 1.20 | -18.54 | 233.16 | 57.81 | 249.65 | 0.8578 | 474.0 | 412.7 | |
| 21.57 | 212.86 | 18.83 | 184.63 | -12.85 | 230.34 | 55.00 | 255.94 | 0.8254 | 862.3 | 284.8 | |
| 14.38 | -6.00 | 12.43 | -6.00 | -13.40 | 229.87 | 54.52 | 255.22 | 0.8215 | 860.3 | 999999 | |
| 0.27 | -6.00 | 0.23 | -6.00 | -13.01 | 229.42 | 54.08 | 255.63 | 0.8167 | 890.7 | 999999 | |
| 0.00 | 5.48 | 0.00 | 4.51 | -11.32 | 227.94 | 52.59 | 257.52 | 0.8000 | -396.0 | -381.7 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -11.54 | 227.74 | 52.40 | 257.21 | 0.7982 | -640.0 | -527.5 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -11.59 | 226.15 | 50.80 | 256.94 | 0.7816 | -398.0 | -373.0 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -11.35 | 225.85 | 50.50 | 257.20 | 0.7781 | -450.0 | -454.9 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -15.18 | 225.32 | 49.97 | 252.22 | 0.7783 | -363.0 | -324.2 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -14.63 | 224.95 | 49.60 | 252.84 | 0.7734 | -523.0 | -400.2 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -14.94 | 224.99 | 49.65 | 252.46 | 0.7745 | -365.0 | -318.6 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -12.94 | 223.19 | 47.84 | 254.69 | 0.7514 | -462.0 | -419.9 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -19.65 | 216.13 | 40.78 | 243.42 | 0.6901 | -651.0 | -508.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -21.75 | 215.95 | 40.61 | 240.49 | 0.6970 | -671.0 | -559.5 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -21.62 | 215.78 | 40.43 | 240.58 | 0.6945 | -755.0 | -668.7 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -26.20 | 214.96 | 39.62 | 234.14 | 0.7083 | -434.0 | -375.8 | |
| 0.00 | 1.80 | 0.00 | 1.14 | -18.11 | 211.25 | 35.90 | 243.32 | 0.6260 | -626.0 | -393.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -16.77 | 209.36 | 34.01 | 244.39 | 0.5961 | -612.0 | -471.0 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -23.73 | 200.55 | 25.20 | 226.55 | 0.5390 | -744.0 | -561.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
